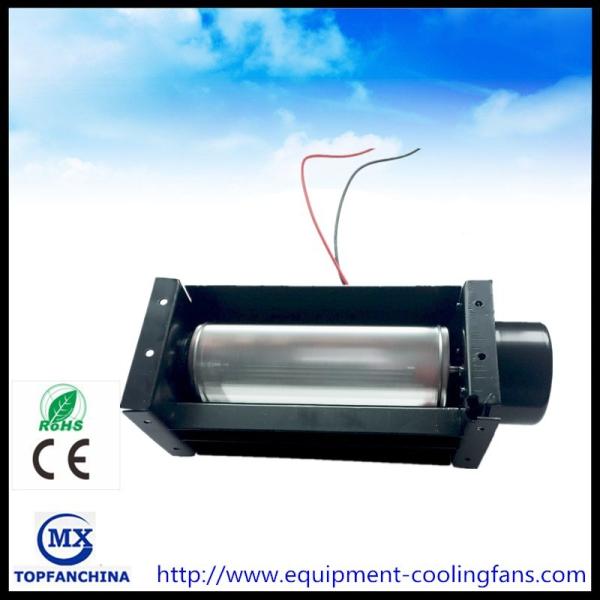

Oven Appliance Parts Cross Flow Fans Brushless 12 Volt Tangential Fan
Basic information:
Modle: MX40090CFM1
Size: 134*60*60mm
Voltage: DC 12V / 24V
Speed: 3000RPM
Max Air flow rate: 24CFM
Max Air pressure:2.9inch-h2o
Working temperature: -30℃ - + 80℃
Usage: air conditional, oven, industry machine, instruments etc.
Feature :
Light weight, big air volume, low noise, low vibration, good heat resistance, long life, reliable movement, little vibration, working stable, easy to mount, low prices, high quality.
Fan environment:
5-1.OPERATING TEMPERATURE----------------------- -20 TO+50℃(CLASS E)
5-2.STORAGE TEMPERATURE ------------------------- -30 TO+75℃
5-3.OPERATING HOMIDITY-----------------------------------RH20%-80%
Additional features:
It can be customized the following special fan according to customer requirements:
(1) high intelligent PWM speed control function;
(2) TC temperature control, RD alarm;
(3) IC protection, with blocking, automatic restart function;
(4) Waterproof function;
(5) Environmental protection function.
Life expentence:
Ball Bearing 50,000 hours (0°C~+45°C)
Sleeve Bearing 30,000hours (0°C~+45°C)
Warranty:
Ball Bearing: 1year
Sleeve Bearing: half of year

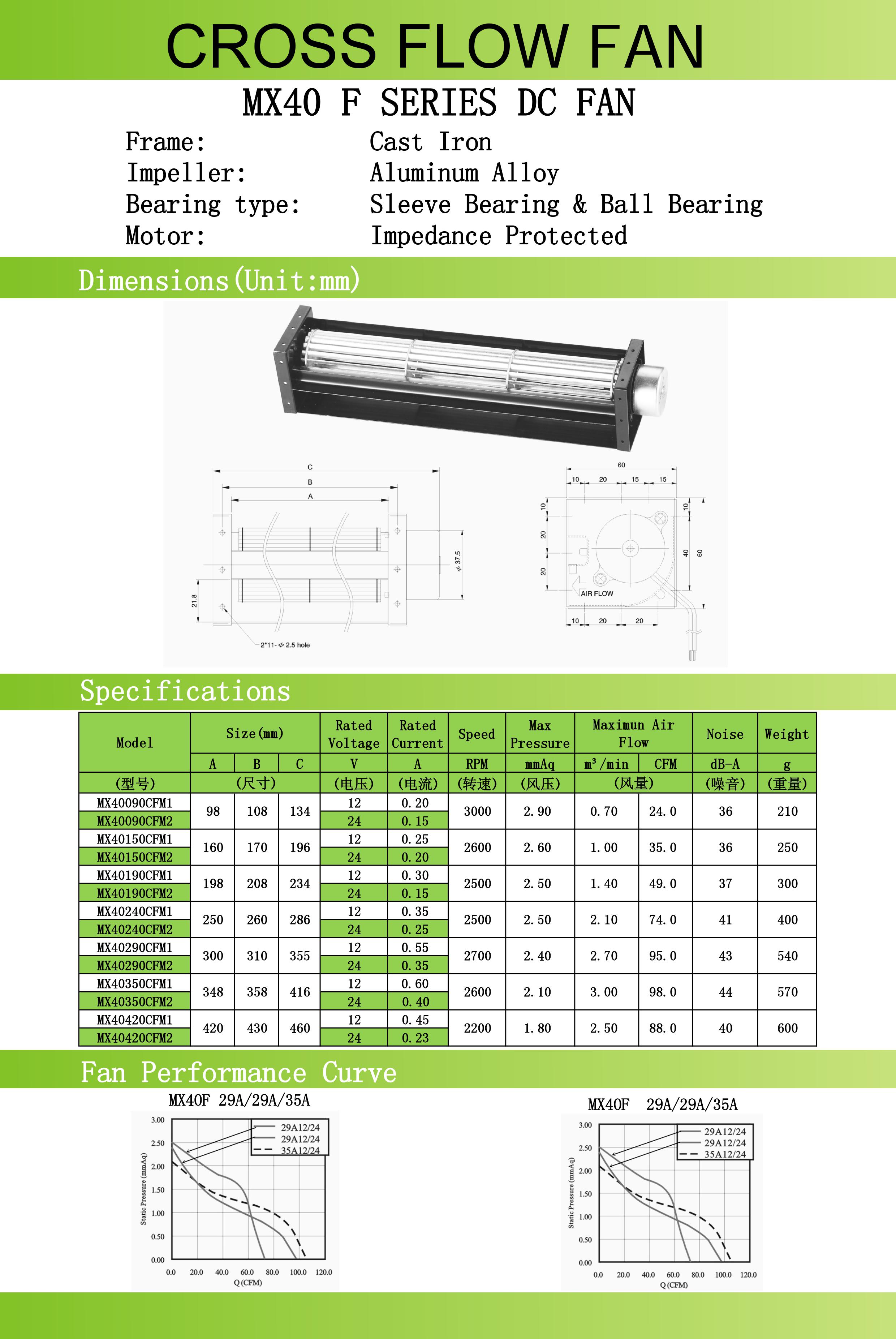

Specification:
Please Note :
Rated Current : Rated Current shall be measured after 3 minutes of continuos rotation at rated voltage.
Rated Speed : Rated Speed shall be measured after 3 minutes of continuos rotation at rated voltage
Start Voltage : The voltage which is able to start the fan to operate by suddenly switching “ON”
Dropping test standard : Drop a minimum packing box in a height of 30 cm for perpendicular free falling motion to the surface of wooden plate of 10 cm. After test, connect the fan to the power, the fan still in normal operation.

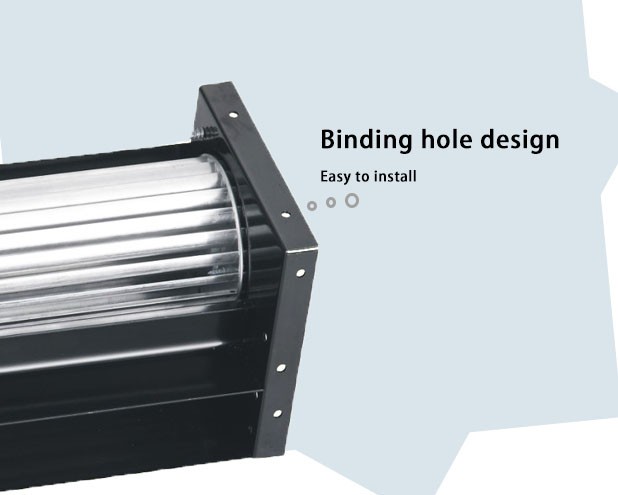

Fan pictures:
Application :
| refrigerator | freezer | Chillers | heaters |
| air conditioner | chassis | ground control | lift |
| elevator | industry equipment | fireplace | Power dissipation |
| electronic equipment | heater | medical equipment | welding machines |
| oven | ventilation wooden | satellite communications | packaging and printing equipment |
It is widely used in refrigerator, freezer, Chillers,heaters, chassis, air conditioners, elevator / lift cooling fan, industry equipment, electronic equipment, medical equipment,grou nd control, power supplies, welding machines, packaging and printing equipment, satellite communications, CNC, machinery and office automation products for ventilating and cooling purposes.
Company information:
For the past 11 years we have been focusing on the development and production of cooling fans
Shenzhen Topfan-China Development Technology Co., Ltd, and founded in 1996 in Shenzhen China, It's a professional manufacturer on DC AC brushless fans . Products support OEM, ODM andpassed CE, RoHS certificated and good sellers both at home and abroad, including Europe, North America, Asia ( Korea and India ) etc. The products, including axialfans, cross flow fans, blower fans, being widely used in the information technology, network communications as well as industrial equipment, medical equipment, home appliances and others.
