Brand Name : MX
Model Number : MX5020GBH1
Certification : CE / ROHS
Place of Origin : China
MOQ : 100pcs
Price : USD 2 . 1 - USD 5 . 9 or Negotiable
Payment Terms : T / T
Supply Ability : 40 , 000pcs per month
Delivery Time : 7 - 10 working days after received payment
Packaging Details : Carton Box or Negotiable
Part Name : MX5020 Series
Voltage : 12V ( Customizable )
Power Consumption : 2 . 6 W ( Customizable )
Air Flow : 4 . 5 CFM ( Customizabl e)
Speed : 5000 RPM ( Customizable )
Bearing Type : BALL Bearing
dc 12v 50mm X 20mm blower cooling mini small fan used in car cabin and electronic industrial device
Model Number : MX5020GBH1
Product Name : Blower Fan
Rated Voltage ( VDC ) : 12 v
Operating Voltage ( VDC ) : 7 . 0 v ~ 13 . 8 v
Rated Current ( A ) : 0.18 ± 10%
Rotation Speed ( RPM ) : 5000 ± 10%
Static Pressure ( inch - h2o) : 11 . 7

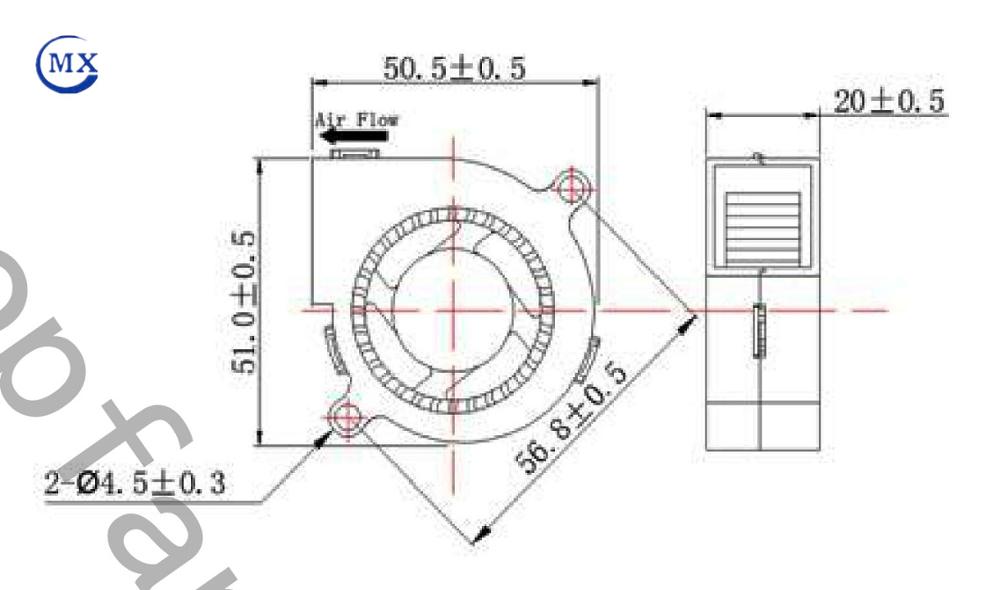

Dimensions ( Unit : mm )

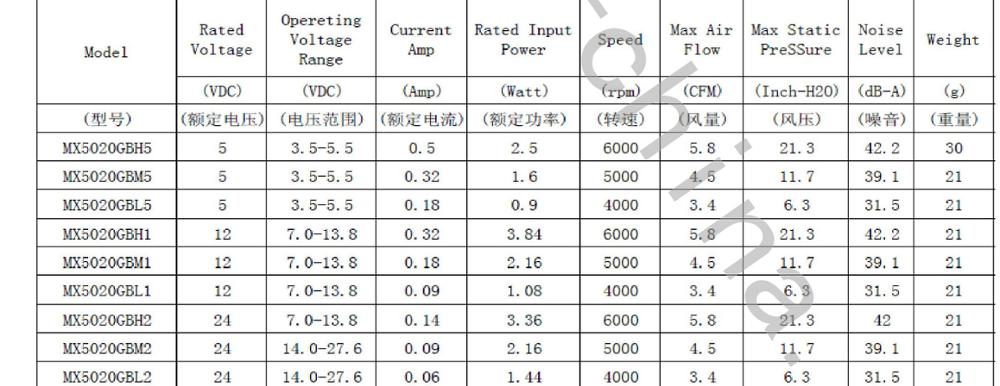

More parameters
Frame and Impeller : | Plastic ( 94V - 0 ) , PBT |
Bearing Type : | Sleeve bearing & Ball bearing |
Function Range : | FG IP58 |
Leadwire : | Red Wire Positive ( + ) , Black Wire Negative ( - ) |
Operating Voltage : | 5V 12V 24V |
Tempetature Range : | – 20 ℃ to +70 ℃ |
Motor : | Impedance Protected and Reverse Polarity Protected |

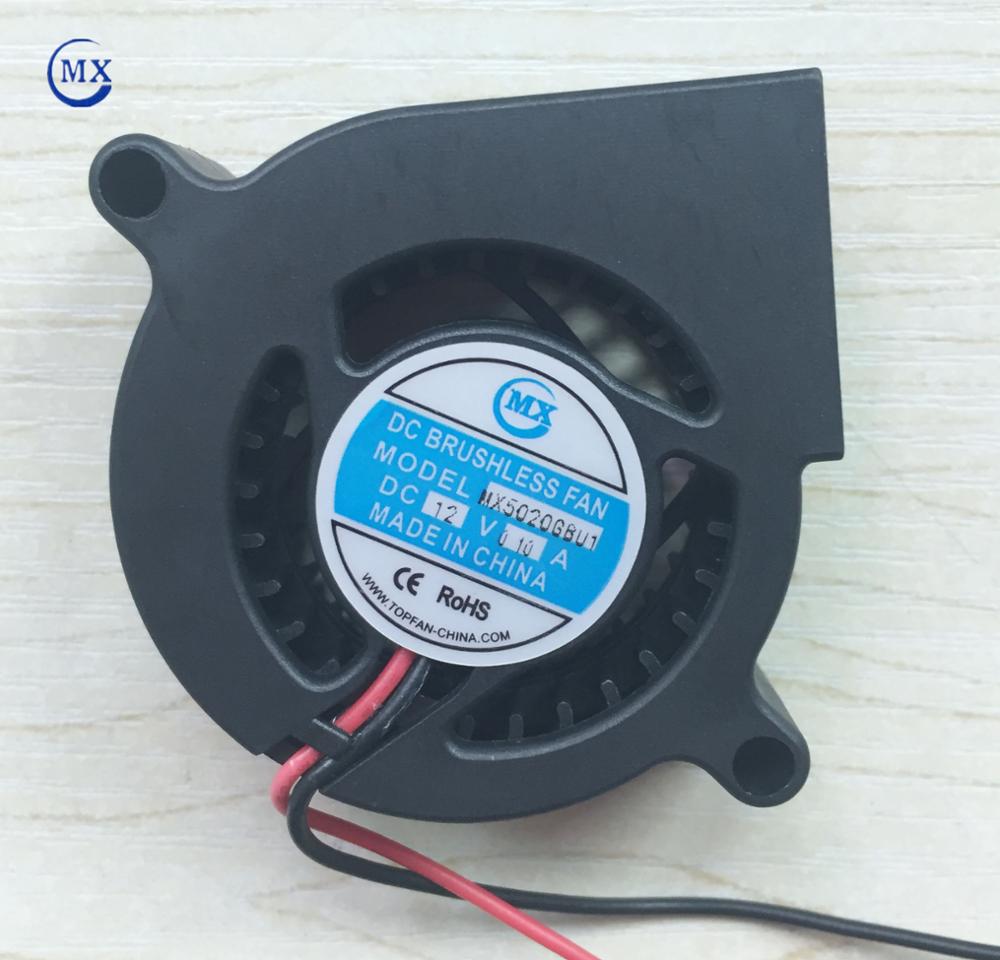

Fan`s photos
How to choose the fan you want:
( Please provide these information )
Fan Type : Axial / blower / cross flow fan ; DC / AC
Case Size (Dimensions)
Speed
Air Flow
Noise
Rating Voltage : 3V / 5V / 12V / 48V / 115V / 220-240V
Bearing : Sleeve / 2Ball / Hydraulic
Wire : 2 lead wires / 3 lead wires / 4 lead wires ( with RD FG or PWM)
Wire Length
Connector or not
Ambient temperature
Fan products used
Target Price
Advantage
1. If you want another rpm or voltage or special functionm Please contact with us directly .
2. The size , voltage, power & speed can be made according to your requirements .
3. Could be made with waterproof function .
4. Could be made with control speed ( PWM ) read speed ( FG ) and alarm ( RD ) function .
5. We ' re professional manufacturer of cooling fans for 11 years ' experience .
6. We offer 30000 hours warranty for sleeve bearing fans , 50000 hours warranty for ball bearing fans
7. We can also provide fans with longer use time .
8. On time delivery
Shipment
* FOB Shenzhen or Hong Kong ( Mass production )
* DHL , UPS , FEDEX , TNT or any other international express ( Sample or small quantity )
* We are not responsible for any accidents , delays or due to the festival or holidays .
( It maybe need more delivery days , so please be more patient )
* All of the product will be shipped out right after the production done . ( Will inform you )
* You can track the package after I ship out . ( Update it )
You could choose the shipping way by yourself .
You could choose the freight forward company by yourself .
We could arrang the shipment according to your require .
If you have any requirements you could contact me soon .
Samples delivery time is 7 working days . ( The quantity of free samples among 2 - 3 pcs .)
Fans quantity : 1K - 5K , the delivery time is 7-10 working days ;
Fans quantity : over 5K , the delivery time is 15-20working days .
International express:UPS/DHL/FEDEX and so on .
Company Profile
Shenzhen Topfan Technology Development Co ., Ltd is a medium - sized enterprise which integrates
production , research , development and sales . It has 3000 flat plant and professional design and
production team . At present , the company has production development department , Q & C department ,
R & D department , the domestic sales department and overseas sales department .
In order to protect the customer ` s rights and interests , all the products were tested strictly and repeatedly before being put on the market . According to the customer ’ s different requirements , we can do the following tests of fan : wind tunnel test , vibration test , noise test , drop test , salt spray test , waterproof test , dust test , cycle test of high and low temperature , life testing , simulation test of high altitude low voltage, and ten items tested ROHS .
Any more information,please feel free to contact Mona →
Skype : Mona Yang
QQ : 3146648329
Tel : 86 755 26070992
Thank you .
![]() |

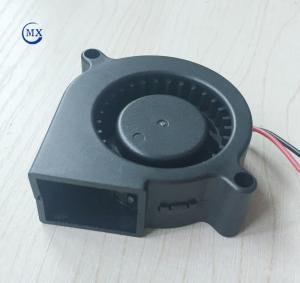

50Mm * 20mm Small Blower Fan Used In Car Cabin And Electronic Industrial Device Images |
