2.34 Inch dc brushless motor Equipment Cooling Fans 12v / 24v 60mm X 25mm sleeve / ball bearing

Shenzhen Topfan Technology Development Co., Ltd.
Contact Now

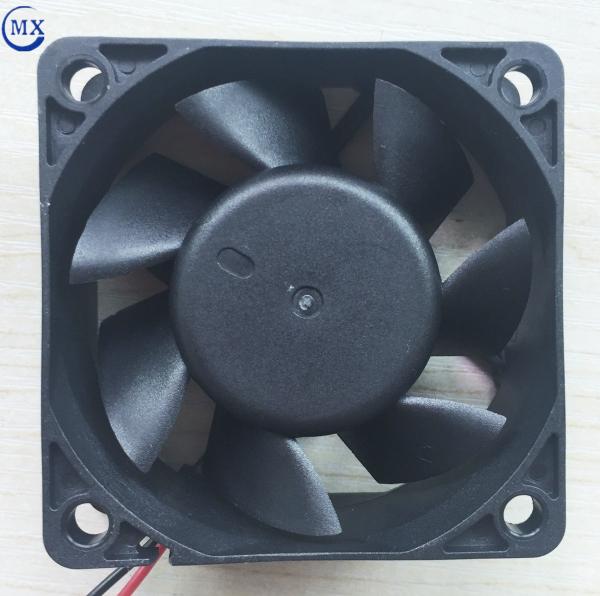

2.34 Inch dc brushless motor Equipment Cooling Fans 12v / 24v 60mm X 25mm sleeve / ball bearing

  • 1
  • 2
  • 3

Brand Name : MX

Model Number : MX6025ABM1

Certification : CE / ROHS

Place of Origin : China

MOQ : 100pcs

Price : USD 2 . 1 - USD 5 . 5 or Negotiable

Payment Terms : T / T

Supply Ability : 40 , 000pcs per month

Delivery Time : 7 - 10 working days after received payment

Packaging Details : Carton Box or Negotiable

Part Name : MX6025 Series

Voltage : 12V ( Customizable )

Power Consumption : 4 W ( Customizable )

Air Flow : 19 CFM ( Customizabl e)

Speed : 4000 RPM ( Customizable )

Bearing Type : BALL Bearing

Contact Now

2 . 34 inch dc brushless motor 12v / 24v 60mm X 25mm sleeve / ball bearing axial fan for medical / home / industrial electronic equipment

Specification

Frame and Impeller : Plastic ( 94V - 0 ) , PBT
Bearing Type : Sleeve bearing & Ball bearing
Function Range : FG RD PWM IP58 IP68
Leadwire : Red Wire Positive ( + ) , Black Wire Negative ( - )
Operating Voltage : 5V 12V 24V
Tempetature Range : – 20 to + 70
Motor : Impedance Protected and Reverse Polarity Protected

2.34 Inch dc brushless motor Equipment Cooling Fans 12v / 24v 60mm X 25mm sleeve / ball bearing2.34 Inch dc brushless motor Equipment Cooling Fans 12v / 24v 60mm X 25mm sleeve / ball bearing

1. If you want another rpm or voltage or special functionm Please contact with us directly .

2. The size , voltage, power & speed can be made according to your requirements .

3. Could be made with waterproof function .

4. Could be made with control speed ( PWM ) read speed ( FG ) and alarm ( RD ) function .

5. We ' re professional manufacturer of cooling fans for 11 years ' experience .

6. We offer 30000 hours warranty for sleeve bearing fans , 50000 hours warranty for ball bearing fans

7. We can also provide fans with longer use time .

8. On time delivery .

How to choose the fan you want

( Please provide these information )

Fan Type , DC / AC

Case Size ( Dimensions )

Speed

Air Flow

Noise

Rating Voltage , 3V / 5V / 12V / 48V / 115V / 220-240V

Bearing , Sleeve / 2Ball / VAPO

Wire , 2 lead wires / 3 lead wires / 4 lead wires

Wire Length

Connector or not

Target Price

Application :

equipment , electronic equipment , medical equipment , computers , power supplies , welding machines ,

packaging , printing equipment , satellite communications , CNC , machinery and office automation products

such as ventilation and cooling purposes . Electrical Fireplace , Oven , Wall Cooler , Disinfecting cabinet ,

Warmer , Microwave , Refrigerator , Cooler , etc .

Ordinary axial fan can be used for ventilation in general factories , warehouses , offices , houses and other places , but also for air cooler ( air cooler ) , evaporator , condenser , spray drop , etc. , Flow fan .

Anti - corrosion , explosion-proof axial fan with anti - corrosion materials and explosion - proof measures , and matching explosion-proof motor can be used to transport explosive , volatile , corrosive gases .

Company Profile

Shenzhen Topfan Technology Development Co . , Ltd is a medium - sized enterprise which integrates

production , research , development and sales . It has 3000 flat plant and professional design and

production team . At present , the company has production development department , Q & C department,

R&D department , the domestic sales department and overseas sales department .

Shipment

You could choose the shipping way by yourself .

You could choose the freight forward company by yourself .

We could arrang the shipment according to your require .

If you have any requirements you could contact me soon .

Samples delivery time is 7 working days . ( The quantity of free samples among 2-3 pcs .)

Fans quantity : 1K - 5K ,the delivery time is 7 - 10 working days ;

Fans quantity : over 5K , the delivery time is 15 - 20 working days

International express : UPS / DHL / FEDEX and so on .

2.34 Inch dc brushless motor Equipment Cooling Fans 12v / 24v 60mm X 25mm sleeve / ball bearing

Any more information , please feel free to contact Mona

We will reply you within 2 hours. Thanks

Skype : Mona Yang

QQ : 3146648329

Tel : 86 755 26070992
