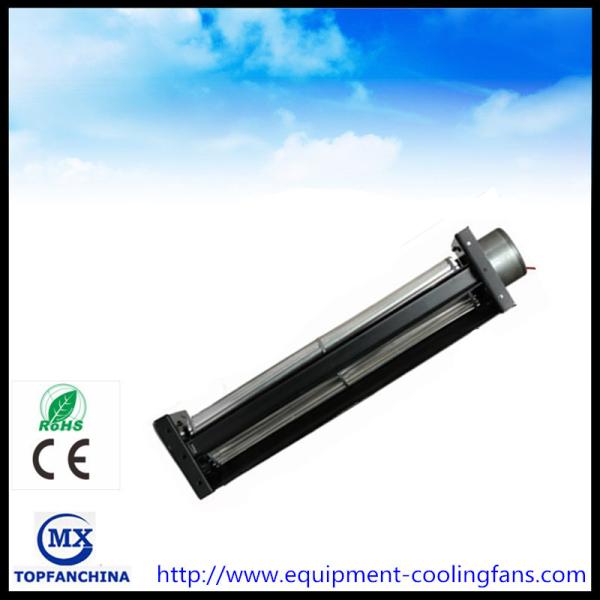

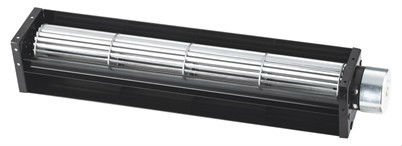

10inch 12V small tangential ventilator dc fan motor, 50mm x 190mm cross-flow exhaust fan with PWM speed control
cross flow fans: also named as tangential or blower wheel fans will generate a wide, even flow of air parallel to the unit being cooled, insuring greater efficiencies and lower noise ratios compared to axial fans
1.Material:
Framework: Cast Iron
Impeller: Aluminum alloy
Protection: Impedance Protected
Temperature Range: 0°C~+45°C(up to-50°C~+100°C)
2.Major Characteristic Parameters:
Bearing type: Ball/Sleeve
Working Voltage: DC 12V / 24V
Speed: 2300 rmp
Rated Frequency: 60/50 Hz
Niose Level: 46 dB-A
Input Power: 9W
Motor Type: Brushless fan
Outlet air length: 190mm, and other 90mm 290mm 350mm 420mm
Motor Rotation: CCW
Outer Frame Structure: Square, inlet air from the top, oulet air to the under
3.Expect life:
ball bearing 50,000 hours(40 °c)
4.Environjment:
1.Operating temperature----------------------- -20 TO+50℃
2.Storage temperature------------------------- -30 TO+75℃
3.Operating homidity------------------------------RH20%-80%
5.Feasure:
Light weight, high strength, big air volume, low noise, low vibration, good heat resistance, long life
6.Specification:
| Model | Size(mm) | Rated voltage (v) | Rated Current (A) | Speed (rpm) | Max Static Pressure (mmAq) | Air Flow (m3/mim) | Air flow (CFM) | Noise Leve (dB-A) | Weight (g) |
| A | B | C | D |
| | | | | | | | | | | | | |
| MX5090CFM1 | 98 | 108 | 143 | 50 | 12 | 0.22 | 2800 | 3.3 | 0.9 | 32 | 39 | 320 |
| MX5090CFM2 | 24 | 0.12 | 39 |
| MX50190CFM1 | 198 | 208 | 260 | 50 | 12 | 0.60 | 2500 | 4.3 | 2.5 | 88 | 46 | 600 |
| MX50190CFM2 | 24 | 0.40 | 46 |
| MX50290CFM1 | 298 | 308 | 360 | 50 | 12 | 0.65 | 2400 | 4.0 | 3.5 | 124 | 46 | 700 |
| MX50290CFM2 | 24 | 0.40 | 46 |
| MX50350CFM1 | 358 | 368 | 420 | 50 | 12 | 0.75 | 2300 | 3.6 | 3.7 | 131 | 45 | 770 |
| MX50350CFM2 | 24 | 0.45 | 45 |
| MX50420CFM1 | 420 | 430 | 474 | 50 | 12 | 0.80 | 2000 | 3.2 | 4.0 | 145 | 46 | 850 |
| MX50420CFM1 | 24 | 0.50 | 46 |

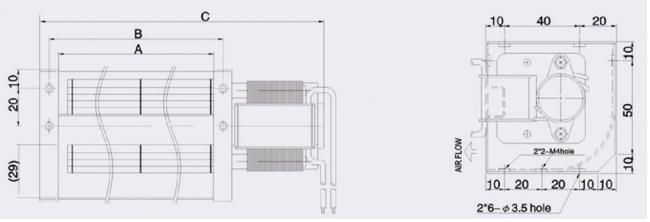

7.Dimention:
8.Application :
It is widely used in refrigerator, freezer, Chillers,heaters, chassis, air conditioners, elevator, lift , industry equipment, electronic equipment, medical equipment, ground control, power supplies, welding machines, packaging and printing equipment, satellite communications, CNC, machinery and office automation products for ventilating and cooling purposes.
