65Mm X 120mm Elevator Cross Flow Fans , AC Equipment Cross Flow Blowers
1 Product Desription
Product size : 65mm X 120mm
Frame : Iron
Impeller : Aluminum Alloy
Motor protection : Impedance protect
ENVIRONMENTAL
OPERATING TEMPERATURE ----------------------- - 20 TO + 50 ℃ ( CLASS E )
STORAGE TEMPERATURE ------------------------- - 30 TO + 75 ℃
OPERATING HOMIDITY ----------------------------------- RH20 % - 80 %
| 1 | RATED VOLTAGE | VOLTS | V | 110 VAC | |
| 2 | ROTATION SPEED | RPM | RPM | 1600 ± 10 % | |
| 3 | ACOUSTICAL NOISE ( AVG ) | dB ( A ) | dB ( A ) | ≤ 40 | DETAILS SEE ATTACHED PAGE . |
| 4 | MAX . AIR - FLOW | m³ / min | m³ / m in | 2 | TWO - CHAMBER METHODS DEAILS SEE ATTACHED PAGE . |
| 5 | MAX . AIR - PRESSURE | mmAq | mmAq | 6 | TWO - CHAMBER METHODS DEAILS SEE ATTACHED PAGE . |
Working temperature :
Ball bearing : - 30 ℃ ~ 75 ℃
Sleeve bearing : - 10 ℃ ~ 70 ℃
Net Weight : 1420g
2 Features
Compact
Maintenance-fee
Easy to mount
Low noise level
Little vibration
Reliable movement
3 Application
65mm X 65mm X 120mm cross flow fan is mainly used for ground control , equipment , electronic equipment , medical equipment , computers , power supplies , welding machines , packaging , printing equipment , satellite communications , CNC , machinery and office automation products such as ventilation and cooling purposes .

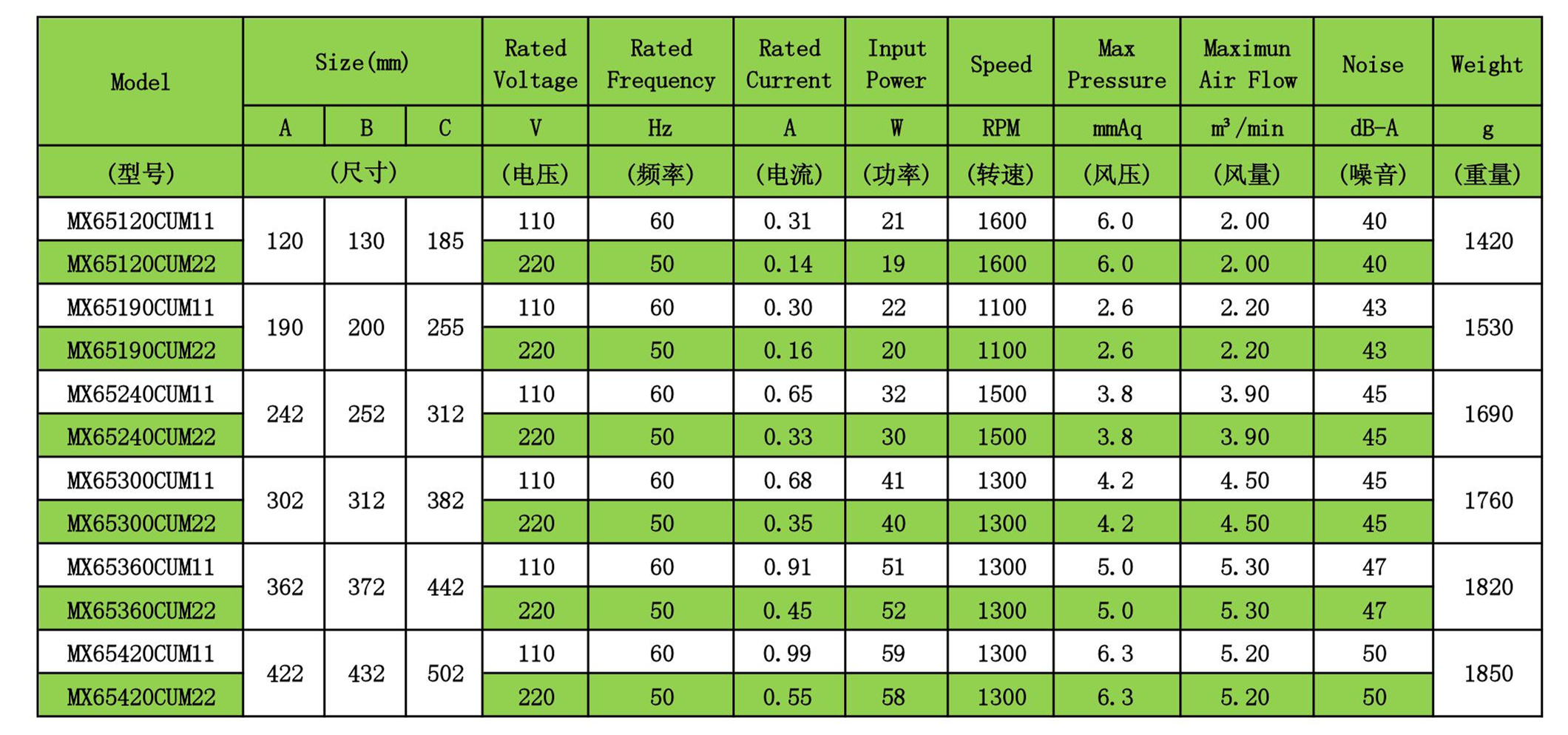

4 . Performance sheet

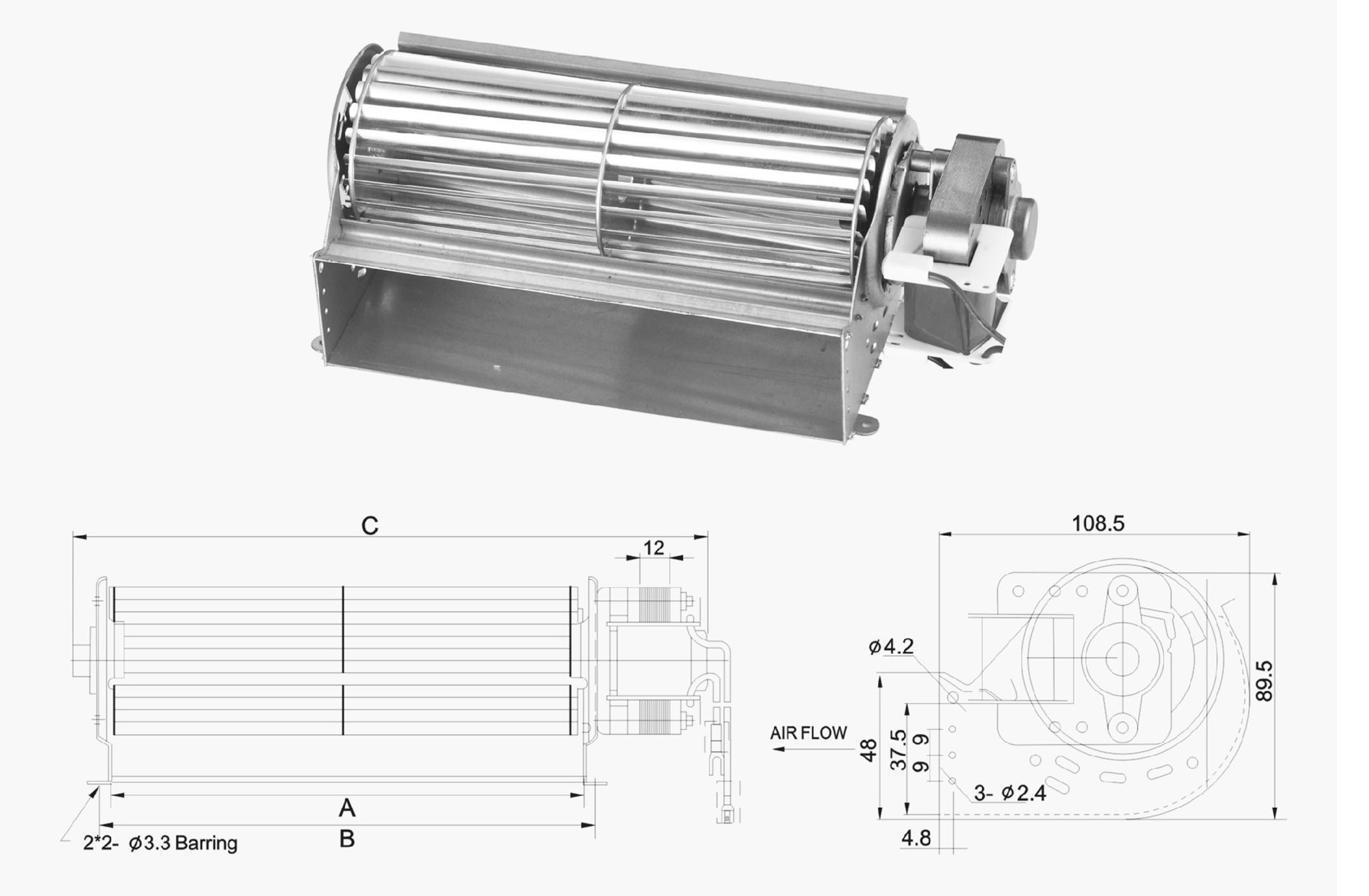

5 . Dimensions
i ) If you want another rpm or voltage or special functionm please contact with us directly .
ii ) Products have a detail in the approval sheet .
iii ) Specifications are subject to change without notice
6 . Our factory
7 . Package
