Elevator Cross Flow Fans With Aluminum Impeller 60mm x 420mm / 420mm DC Fan

Name: Elevator Cross Flow Fans With Aluminum Impeller 60mm x 420mm 420mm DC Fan
Brand: TOPFAN/ODM/OEM
Price: 10 USD

Brand Name : TOPFAN/ODM/OEM

Model Number : MX60420CUM2

Certification : CE

Place of Origin : China

MOQ : 500pcs

Price : US$10 - 14

Payment Terms : T/T, Western Union

Supply Ability : 600,000pcs per month

Delivery Time : 5-12 working days after received your payment

Packaging Details : carton

Product Name : DC Cooling Fan

Voltage : 12V / 24V

Frame : Iron

Impeller : Aluminum

Bearing Type : Ball Bearing

Size : 60mm x 420mm

Contact Now

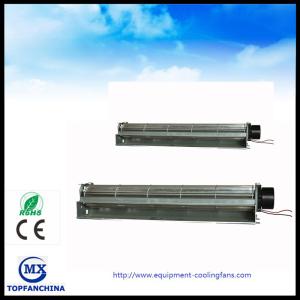

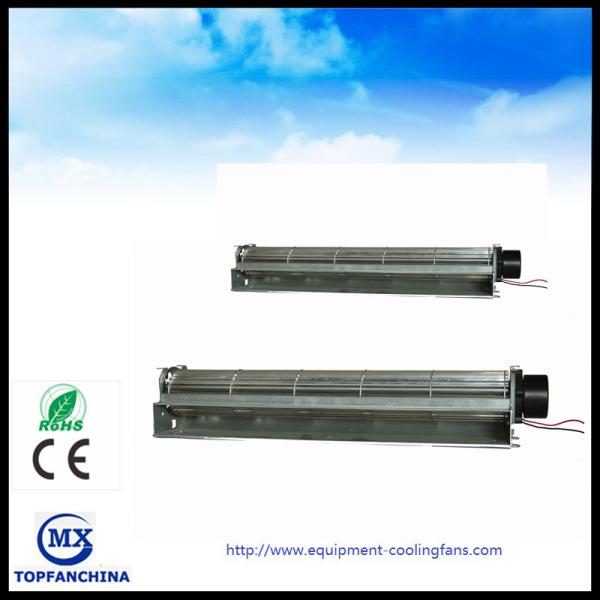

The Elevator Fan With Aluminum Impeller Cross Flow Fans 60mm x 420mm / 420mm DC Fan

12V 60x420mm Tubular Blower Fan, high air flow and long life expectancy , are widely used in ventilating Elevator, as well as industrial production equipment, medical equipment, home appliances, etc.

Specification

Model 60U	Size(mm)			Rated voltage (v)	Rated Current (A)	Speed (rpm)	Max Static Pressure (mmAq)	Air Flow (m3/mim)	CFM	Noise Leve (dB-A)	Weight (g)
	A	B	C
LRD60120A12	120	130	185	12	0.65	2500	6.3	2	71	49	520
LRD60120A24				24	0.40
LRD60180A12	180	190	245	12	0.95	2200	5.9	2.8	99	50	610
LRD60180A24				24	0.50
LRD60240A12	240	250	305	12	0.50	1600	2.8	2.9	102	42	690
LRD60240A24				24	0.25
LRD60300A12	300	310	365	12	0.60	1500	2.6	3.5	124	43	780
LRD60300A24				24	0.30
LRD60360A12	360	370	425	12	0.65	1400	2.5	4.2	149	42	860
LRD60360A24				24	0.35

Elevator Cross Flow Fans With Aluminum Impeller 60mm x 420mm / 420mm DC Fan
