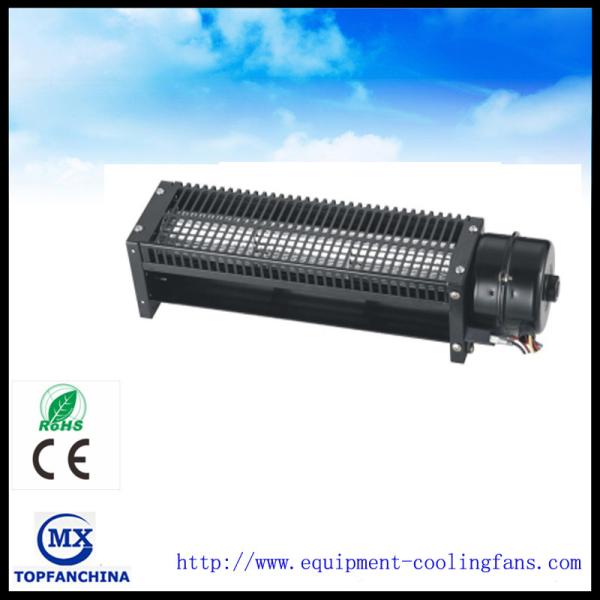

2400rpm 110v / 220v Aluminum Alloy Tangential Fans 60mm X 420mm
Application:
This blower are commonly used in HVAC systems,machinery for heating, ventilating, air conditioning, drying, dehumidifying, etc. Such as electronic air cleaner , hand dryers,electronic oven, gas oven, electronic fireplace, gas fireplace, electric fan good balance condition,etc.
Specification :
| Model | MX60420CFWM22 |
| Rotor Dimension | 60mm x 420mm |
| Rated Voltage | AC 220V - 240V |
| Voltage Range | AC 160V - 242V |
| Rated Current | 0.17 ± 10%A |
| Power Consumption | 37 . 4w ± 10%W |
| Speed | 2400 ± 10%RPM |
| Max . Air flow | 138 ± 10%CFM |
| Max . Static Pressure | 3.8 mmAq |
| Noise Level | 56 dB A |
| Weight | 1785g |
| Environmental Specification | Operating Temperature : - 10℃ ~ 55℃ Operating Humidity : - 20% ~ 80%RH |
Description :
- 60 * 420mm AC FAN , used for cooling and ventilation .
- Frame : Cast Iron , Painted Black
- Blade : Aluminum Alloy
- Stator & Rotor : Silicon steel
- Magnet Wires : Copper 2 UEW
- Bobbin : PA-66 UL 94 V-0
- Bearing Type : Sleeve Bearing & Ball Bearing
Dimensions (Unit:mm)
Fan Performance Curve:
Shenzhen Topfan Technology Development Co . , Ltd is a high - tech enterprises of professional manufacture and researcher on dc brushless fans and ac fans . Is the professional cooling fan manufacturer in the field with the most professional and largest scale intergrating research and development , manufacturing and sales . The products , including brushless fans , cross flow fans, blower fans , centrifugal fans , dc brushless motor , shaded pole , AC and EC fans are widely used in the computer information technology , network communications , as well as industrial production equipment , medical equipment , home appliances , etc .
