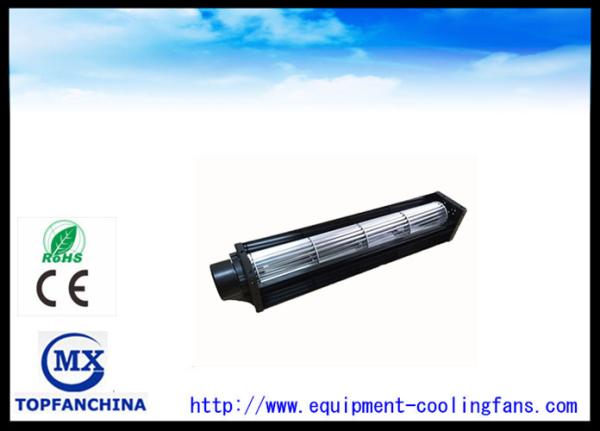

Motor Cross Flow Fans 50mm Diameter 350mm Length DC Axial Fan Ventilation

Name: Motor Cross Flow Fans 50mm Diameter 350mm Length DC Axial Fan Ventilation
Brand: TOPFAN/ODM/OEM
Price: 8 USD

Quality Motor Cross Flow Fans 50mm Diameter 350mm Length DC Axial Fan Ventilation wholesale

Brand Name : TOPFAN/ODM/OEM

Model Number : LRD50350A12

Certification : CE/ROHS

Place of Origin : China

MOQ : 500pcs

Price : US$8 - 12

Payment Terms : T/T, Western Union

Supply Ability : 600,000pcs per month

Delivery Time : 5-12 working days after received your payment

Packaging Details : carton

Product Name : 50x350mm DC Cross Flow Fan

Voltage : 12V / 24V

Frame : Iron

Impeller : Aluminum

Bearing Type : Ball Bearing

Speed : 2300rpm

Contact Now

Motor Cross Flow Fans 50mm Diameter 350mm Length DC Axial Fan Ventilation

12V 50x350mm Cross Flow Fan, high air flow and long life expectancy , are widely used in ventilating Elevator, as well as industrial production equipment, medical equipment, home appliances, etc.

Our cross flow fans, also named as tangential or blower wheel fans will generate a wide, even flow of air parallel to the unit being cooled, insuring greater efficiencies and lower noise ratios compared to axial fans.

Specification

Model	Size(mm)				Rated voltage (v)	Rated Current (A)	Speed (rpm)	Max Static Pressure (mmAq)	Air Flow (m3/mim)	Air flow (CFM)	Noise Leve (dB-A)	Weight (g)
	A	B	C	D

LRD50090A12	98	108	143	50	12	0.22	2800	3.3	0.9	32	39	320
LRD50090A24					24	0.12					39
LRD50190A12	198	208	260	50	12	0.60	2500	4.3	2.5	88	46	600
LRD50190A24					24	0.40					46
LRD50290A12	298	308	360	50	12	0.65	2400	4.0	3.5	124	46	700
LRD50290A24					24	0.40					46
LRD50350A12	358	368	420	50	12	0.75	2300	3.6	3.7	131	45	770
LRD50350A24					24	0.45					45
LRD50420A12	420	430	474	50	12	0.80	2000	3.2	4.0	145	46	850
LRD50420A24					24	0.50					46
