20mm Rechargeable 5V Mini DC Axial Fan 0.42 - 1.70 CFM Air Flow

Shenzhen Topfan Technology Development Co., Ltd.
Contact Now

20mm Rechargeable 5V Mini DC Axial Fan 0.42 - 1.70 CFM Air Flow

Brand Name : MX,ODM,OEM

Model Number : MX2010ABH1

Certification : CE/ROHS

Place of Origin : China

MOQ : 500pcs

Price : USD 1.5 - USD 3.5 or Negotiable

Payment Terms : T/T or western Union

Supply Ability : 40,000pcs per month

Delivery Time : 7-10 working days after received payment

Packaging Details : Carton Box or Negotiable

Part Name : MX2010A Series

Voltage : 5 - 12 V (Customizable)

Power Consumption : 0.35 - 0.84 W (Customizable)

Air Flow : 0.42 - 1.70 CFM (Customizable)

Speed : 8000 - 20000 RPM (Customizable)

Bearing Type : Ball Bearing / Sleeve Bearing

Contact Now

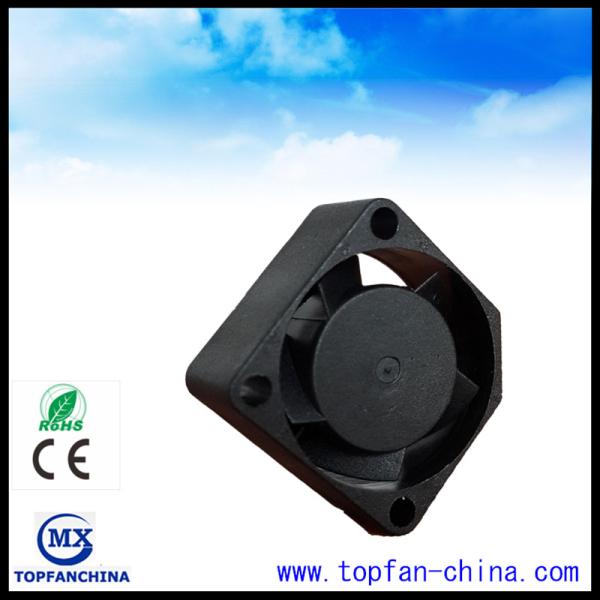

20mm Rechargeable 5V Mini DC Axial Fan 0.42 - 1.70 CFM Air Flow

20mm Rechargeable 5V Mini DC Axial Fan 0.42 - 1.70 CFM Air Flow
1. Description:

  • 20*20*10mm Mini Fan , DC Burshless Fan , DC Axial Fan , Computer Fan , DC Cooling Fan .

  • It's a new special mini fan for equipment of confined space .

2. Material:

  • Frame:Plastic(UL94V-0)

  • Impeller:Plastic(UL94V-0)

  • Leadwire:UL1007 AWG#26 or Equivalent (+):Red (-):Black

3. Protection:

  • Motor:Impedance Protected and Reverse Polarity Protected

4. Expected Life:

  • Ball bearing:50,000 hours (40℃)

  • Sleeve Bearing:30,000 hours (40℃)

5. Allowable Ambient Temperature Range:

  • Operating Temperature:-10℃~+70℃

  • Storage Temperature:-40℃~+70℃

  • Non Condensing Environment

6.Insulation Resistance:

  • Not less than 10M ohm between housing and positive end of lead wire(red) at 500V DC.

7 . Dielectric Strength:

  • No damage should at 500 VAC for 60 second , measured with 5mA trip current between
    housing and positive end of lead wire.

8. Locked Rotor Protection:

  • No damage shall be found after 72 hours continuously at condition of rotation locked,
    Restarting is automatic as soon as constraint to running has been released

9. Polarity Protection:

  • No damage shall be found with reverse connection 5 minute at rated voltage. After returning
    to normal polarity, all function shall be normal

10. Specification:

Model

Rated Voltage

Operating

Voltage Range

Current

Amp

Rated

Input

Power

Speed

Max Air Flow

Max

Static

Pressure

Noise Level

Weight

(v)

(v)

(Amp)

(Watt)

(rpm)

(CFM)

(Inch-H2O)

(dB-A)

(g)

MX2010AB(S)H5

5

3.5 to 5.5

0.13

0.65

15000

1.25

0.14

27

5

MX2010AB(S)M5

5

3.5 to 5.5

0.10

0.50

10000

0.73

0.05

22

5

MX2010AB(S)L5

5

3.5 to 5.5

0.07

0.35

8000

0.42

0.04

21

5

MX2010AB(S)U1

12

7.0 to 13.8

0.07

0.84

20000

1.70

0.24

30

5

MX2010AB(S)H1

12

7.0 to 13.8

0.05

0.60

15000

1.25

0.14

27

5

MX2010AB(S)M1

12

7.0 to 13.8

0.03

0.36

10000

0.73

0.05

22

5

11.Dimensions:

20mm Rechargeable 5V Mini DC Axial Fan 0.42 - 1.70 CFM Air Flow


12.Curve Performance:

20mm Rechargeable 5V Mini DC Axial Fan 0.42 - 1.70 CFM Air Flow

20mm Rechargeable 5V Mini DC Axial Fan 0.42 - 1.70 CFM Air Flow
