30mm Diameter Equipment Cooling Fans / 1 . 18 Inch Industrial Cooling Fans

Shenzhen Topfan Technology Development Co., Ltd.
Contact Now

30mm Diameter Equipment Cooling Fans / 1 . 18 Inch Industrial Cooling Fans

Brand Name : MX

Model Number : MX30290CFM22

Certification : CE / ROHS / UL / SGS

Place of Origin : China

MOQ : 500pcs

Price : us $ 1 . 5 / pcs to us $ 3 . 00 / pcs , and negotiation

Payment Terms : T / T or western Union

Supply Ability : 600 , 000pcs per month

Delivery Time : 5 - 12 working days after received your payment

Packaging Details : carton

Voltage : 110 - 120 V , 220 - 240V

Diameter : 30mm

Length : 90mm , 150mm , 190mm , 290mm

Bearing type : Ball Bearing

Frame Material : Aluminum ADC - 12

Blade Material : Cast Iron

Contact Now

30mm Diameter Equipment Cooling Fan / 1 . 18 inch Series AC Elevator Cross Flow Fan

1 Purpose

It is applied in air cleaner , elevator , humidifier , laboratory , workshop , dehumidifier , projector and copy machine , etc ..

2 Expeceed Life

Ball Bearing 50 , 000 hours
Sleeve Bearing 30 , 000hours

3 ELECTRICAL CHARACTERISTICS

ALL MEASUREMENTS PERFORMED AT25 ~ 30 ℃ ROOM TEMPERATURE

& 50 ~ 80 %R . H . UNLESS OTHERWISE SECIFIED .

1

RATED VOLTAGE

VOLTS

V

220 VAC

2

OPERATION VOLTAGE

VOLTS

V

160 - 242

3

FREQUENCY

Hz

Hz

50

4

NPUT CURRENT

AMP

A

0.13 A± 10 %

AT RATED VOLTAGE

5

INPUT POWER

WATTS

W

13W ± 10 %

AT RATED VOLTAGE

6

ROTATION SPEED

RPM

RPM

2700 ± 10 %

7

ACOUSTICAL NOISE ( AVG )

dB ( A )

dB ( A )

≤ 32

DETAILS SEE ATTACHED PAGE

8

MAX . AIR - FLOW

CFM

Q

28

TWO - CHAMBER METHODS

DEAILS SEE ATTACHED PAGE

9

MAX . AIR -PRESSURE

mmH2O

P

1 . 0

TWO - CHAMBER METHODS

DEAILS SEE ATTACHED PAGE

10

INSULATION

RESISTANCE

MEG .

OHM

> 20 MΩ

BETWEEN FRAME AND

TERMINAL

11

DIELECTRIC STRENGTH

1800V , 3S , 1MA

BETWEEN FRAME AND

TERMINAL

12

ROTARY DIRECTION

CC W

13

INSULATION CLASS

CLASS E

14

LIFE EXPECTANC

15000 Hours at 25 ℃ / 65 % RH

4 ENVIRONMENTAL

4 - 1 . OPERATING TEMPERATURE ----------------------- - 20 TO + 50 ℃ ( CLASS E )

4 - 2 . STORAGE TEMPERATURE ------------------------- - 30 TO + 75 ℃

4 - 3 . OPERATING HOMIDITY ----------------------------------- RH 20 % - 80 %

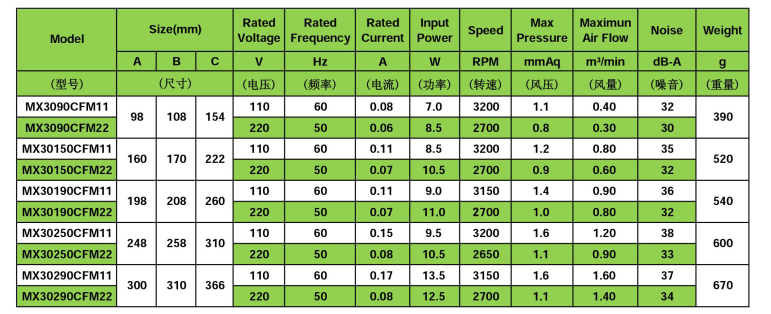

5 Specifications

30mm Diameter Equipment Cooling Fans / 1 . 18 Inch Industrial Cooling Fans

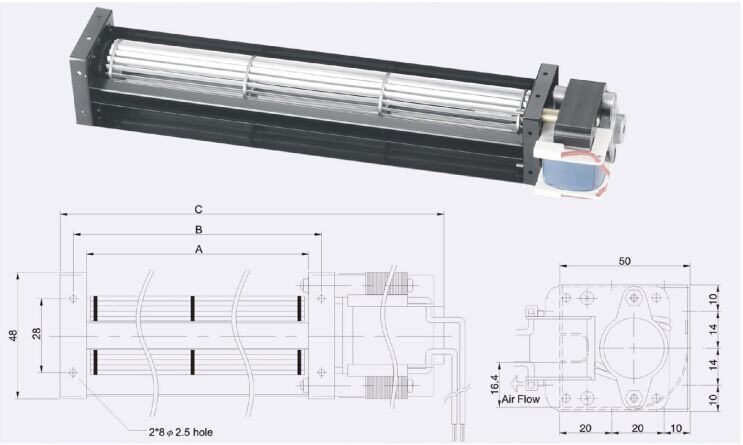

6 Dimensions ( Unit : mm )
30mm Diameter Equipment Cooling Fans / 1 . 18 Inch Industrial Cooling Fans

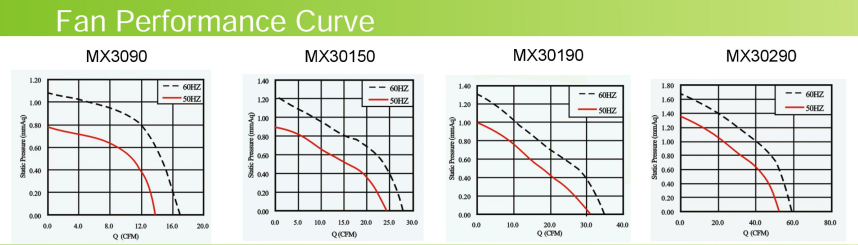

7 Fan Performance Curve

30mm Diameter Equipment Cooling Fans / 1 . 18 Inch Industrial Cooling Fans
