Waterproof IP55 Laptop Cooling Fan , Plastic Computer Cooling Fans

Name: Waterproof IP55 Laptop Cooling Fan Plastic Computer Cooling Fans
Brand: TOPFAN/ODM/OEM
Price: 1.5 USD

Quality Waterproof IP55 Laptop Cooling Fan , Plastic Computer Cooling Fans wholesale

Brand Name : TOPFAN/ODM/OEM

Model Number : MX4056ABH1

Certification : CE/ROHS/UL/SGS

Place of Origin : China

MOQ : 500pcs

Price : us$1.5/pcs to us$3.00/pcs, and negotiation

Payment Terms : T/T or western Union

Supply Ability : 600,000pcs per month

Delivery Time : 5-12 working days after received your payment

Packaging Details : carton

Product Name : 40mm×40mm×56mm DC CPU Cooling Fan

Voltage : 12V

Material : Plastic

Bearing type : Ball Bearing

Speed : 11000rpm - 15600RPM

Max air Flow : 26.05CFM-32.41CFM

Contact Now

40mm × 40mm × 56mm 12V DC CPU Cooling Fan / Waterproof IP55 IP56 IP68 DC Fan 40mm

Applications:

Topfan’s fan products are utilized by all type of machines which required heat reduction systems,
such as UPS systems; Telecommunication equipments; Ventilating systems; LED Digital signage; Disports/exercise equipments; Medical instruments.

Expeceed Life:

Ball Bearing 70,000 hours

Description:

Frame and Impeller: Plastic (94V-0),Material
Bearing Type: Ball bearing
Function Range: FG RD
Leadwire: UL 1061 AWG #28 Or Equlvalent
Operating Voltage: 12V
Tempetature Range: –20℃ to +70℃
Motor: Rotational direction CCW view from front face

A: Specifications:

Model	Bearing Type	Rated Voltage	Operating Voltage	Input Current	Input Power	Speed	Max Air Flow		Max Static Pressure	Noise	Weight
Model	Bearing Type	Rated Voltage	Operating Voltage	Input Current	Input Power	Speed	Max Air Flow		Max Static Pressure	Noise	Weight
Part No.	B.S	VDC	VDC	Amp	Watt	RPM	CFM	m³/min	Inch-H₂O	dB-A	g
MX4056ABM1	B	12	7.0-13.2	0.85	10.20	11000	26.05	0.74	1.50	58.00	96.00
MX4056ABH1	B	12	7.0-13.2	1.25	15.00	13900	29.83	0.85	2.03	61.50	96.00
MX4056ABU1	B	12	7.0-13.2	1.50	18.00	15600	32.41	0.92	2.64	64.50	96.00

B: Electrical Specification:

ITEM		Specification. Condition
Locked Rotor Protection	□	Safety Condition
	■	Auto power off after locked at rated voltage for 1sec After auto power off ,circuit attempt restart in 2 to 6sec
Polarity Protection	■	Open circuit when Vcc&GND are exchanged
	□	Circuit won’t be burned within 5 seconds when Vcc &GND are exchanged
Insulation Resistance	10MΩ Between unshielded wire and frame at 500VDC/min
Dielectric Strength	5mA Max/ Measured b/w lead wire(+)and frame at 500VAC/min
Special Function	□		Soft Start 5s (0 to Max speed)	□	Current Limiter

C. (Main Materials, Parts Specification)

Bearing	■(Dual Ball Bearing)						□		(Sleeve Bearing)
Frame	■	PBT of UL94V-0.					□		Die-cast Aluminum Alloy
Impeller	■	PBT of UL94V-0.					□		Steel
Bobbin	PBT of UL94V-0.
Lead Wire	■		Red(+)	■	Black(-)	□		Blue(PWM)		UL 1571 28#
	□		Yellow(FG)	□	White(RD)	2 wires 100±10mm
Connector	No
Tube	No

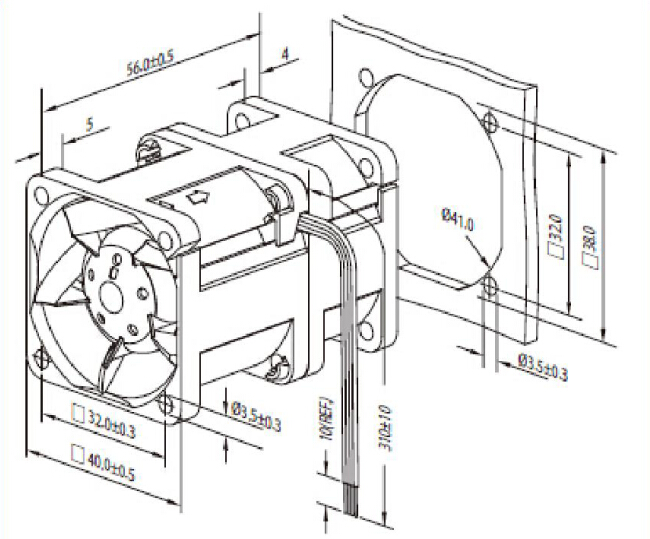

D: Dimensions (Unit:mm)

Waterproof IP55 Laptop Cooling Fan , Plastic Computer Cooling Fans

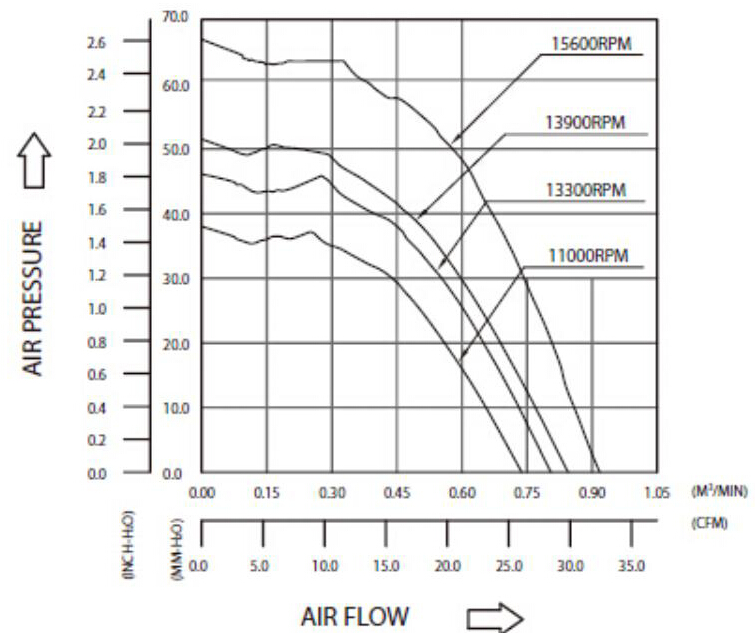

Fan Performance Curve

Waterproof IP55 Laptop Cooling Fan , Plastic Computer Cooling Fans
