5 Blades 4.5 Inch Equipment Cooling Fan /AC Fan 120mm x 120mm x 38mm / Cooler Fan

Shenzhen Topfan Technology Development Co., Ltd.
Contact Now

5 Blades 4.5 Inch Equipment Cooling Fan /AC Fan 120mm x 120mm x 38mm / Cooler Fan

Brand Name : MX

Model Number : MX12038ABH22

Certification : CE ROHS UL

Place of Origin : GuangDong / China

MOQ : 500pcs

Price : USD + 1 / 10 + Piece

Payment Terms : Western Union, T/T

Supply Ability : 100000 + Piece + A Week

Delivery Time : 7 - 10 working days

Packaging Details : Carton box

Size : 120x120x38mm

Voltage : 110V-120V / 220V - 240V

Bearing Type : Ball Bearing / Sleeve Bearing

Watt : 25 / 16W

Air Volume : 87 / 160CFM

Current : 0.22/0.27A

Contact Now

5 Blades 4.5 Inch Equipment Cooling Fan /AC Fan 120mm x 120mm x 38mm / Cooler Fan

Applications:


Topfan’s fan products are utilized by all type of machines which required heat reduction systems,
such as UPS systems; Telecommunication equipments; Ventilating systems; LED Digital signage; Disports/exercise equipments; Medical instruments.


Description:

  • 110V-120V , 220V-240V AC FAN, used for cooling and ventilation.
  • Frame: Aluminum ADC-12, Painted Black
  • Blade:Plastic
  • Stator& Rotor: Silicon steel
  • Magnet Wires: Copper 1 PEW
  • Bobbin: 94V-0 fireproof, metal frame and plastic impeller
  • Bearing Type: Ball Bearing or Sleeve Bearing


Expected Life :

1 . Ball Bearing 50,000 hours ( 40°c )

2 . Sleeve Bearing 30,000 hours ( 40°c )

Allowable Ambient Temperature Range

1 . - 10 °c ~ +70 °c ( Operating )

2 . - 40°c ~ + 70°c ( Storage )

3 . ( non - condensing environment )

Specifications:

Model Bearing Type Rated Voltage Freq. Current Amp Input Power Speed Max Air Flow

Max Static Pre

ssure

Noise Level

Wei

ght

Part No. S B Y VDC Hz Amp Watt RPM CFM m3/min Inch-H2O dB-A g

MX12038

ABH11

B.S 110/120 50/60 0.14/0.12 25/16 2500/2800 87/160 2.46/2.85 0.26/0.32 34/40 500

MX12038

ABH22

B.S 220/240 50/60 0.22/0.27 25/16 2500/2800 87/160 2.46/2.85 0.26/0.32 34/40 500

Competitive Advantage:

*Qualified, cost effective and easily operated

*Small in shape, have compact structure

*UL, CE, Rohs, CUL, CCC

* Competitive Pricing

* Keep Investing and Developing In New Products

* The Most Advanced Testing and Measuring Equipment

* On-Time Delivery

Our Services

1.Warranty : one year warranty for all products.

2.Privated Labelling: All of axial fan are able to be Private labeled.

3.Delivery time:Normally lead time is 14 days.

4.Products quality:100% products inspection before delivery.

5.Customized products and cooling products is provided as customer request.

Photo:

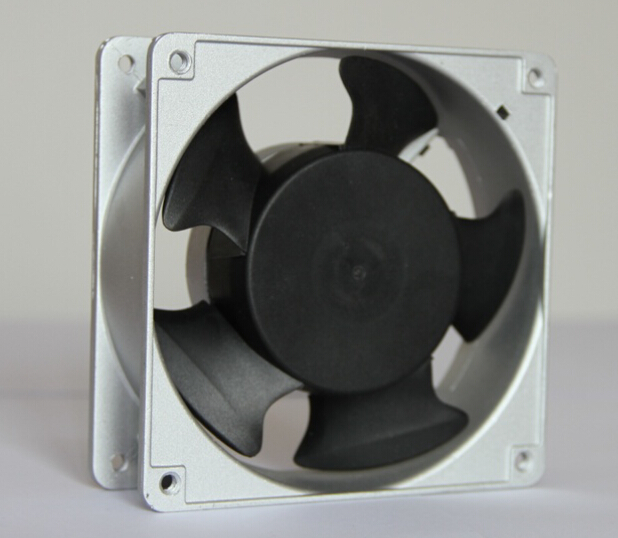

5 Blades 4.5 Inch Equipment Cooling Fan /AC Fan 120mm x 120mm x 38mm / Cooler Fan

5 Blades 4.5 Inch Equipment Cooling Fan /AC Fan 120mm x 120mm x 38mm / Cooler Fan

5 Blades 4.5 Inch Equipment Cooling Fan /AC Fan 120mm x 120mm x 38mm / Cooler Fan
