Industrial Ventilation Fans 120 x 120 x 38mm 4.5 Inch Computer Case Fan

Name: Industrial Ventilation Fans 120 x 120 x 38mm 45 Inch Computer Case Fan
Brand: Topfan / OEM
Price: 1 USD

Quality Industrial Ventilation Fans 120 x 120 x 38mm 4.5 Inch Computer Case Fan wholesale

Brand Name : Topfan / OEM

Model Number : MX12038ZBU4

Certification : CE / ROHS / UL

Place of Origin : ShenZhen / China

MOQ : 500Pieces

Price : USD + 1 TO 6 +Pieces

Payment Terms : T/T, Western Union

Supply Ability : 70000 + Pieces + A Week

Delivery Time : 5 - 8 Working Days

Packaging Details : Carton Box

Rated Voltage : 12V 24V 48V

Current Amp : 0 . 4 / 2 . 5A

Bearing Type : Dual Ball Bearing

Input Power : 12 / 48W

Speed : 3000 / 4500RPM

Max Air Flow : 145 . 98 / 222 . 31CFM

Noise Level : 50 / 64dBA

Weight : 289g

Contact Now

Industrial Ventilation Fans 120 x 120 x 38mm 4.5 Inch Computer Case Fan

Model	Bearing Type	Rated Voltage	Operating Voltage	Input Current	Input Power	Speed	Max Air Flow		Max Static Pressure		Noise	Weight
Model	Bearing Type	Rated Voltage	Operating Voltage	Input Current	Input Power	Speed	Max Air Flow		Max Static Pressure		Noise	Weight
Part No.	B.S	VDC	VDC	Amp	Watt	RPM	CFM	m³/min	Inch-H₂O	pa	dB-A	g
MX12038ZBH1	B	12	7.0-13.8	2.50	30.00	4000	193.50	5.48	0.67	167.69	60.00	289.00
MX12038ZBM1	B	12	7.0-13.8	1.60	19.20	3500	173.33	4.91	0.54	134.35	55.00	289.00
MX12038ZBL1	B	12	7.0-13.8	1.00	12.00	3000	145.98	4.13	0.39	97.77	50.00	289.00
MX12038ZBU2	B	24	14.0-27.6	2.00	48.00	4500	222.31	6.30	0.86	215.26	64.00	289.00
MX12038ZBH2	B	24	14.0-27.6	1.00	24.00	4000	193.50	5.48	0.67	167.69	60.00	289.00
MX12038ZBM2	B	24	14.0-27.6	0.70	16.80	3500	173.33	4.91	0.54	134.35	55.00	289.00
MX12038ZBL2	B	24	14.0-27.6	0.50	12.00	3000	145.98	4.13	0.39	97.77	50.00	289.00
MX12038ZBU4	B	48	28.0-56.0	1.00	48.00	4500	222.31	6.30	0.86	215.26	64.00	289.00
MX12038ZBH4	B	48	28.0-56.0	0.60	28.80	4000	193.50	5.48	0.67	167.69	60.00	289.00
MX12038ZBM4	B	48	28.0-56.0	0.50	24.00	3500	173.33	4.91	0.54	134.35	55.00	289.00
MX12038ZBL4	B	48	28.0-56.0	0.40	19.20	3000	145.98	4.13	0.39	97.77	50.00	289.00

General Specifications:

Frame	plastic(UL94v-0)
Impeller	plastic(UL94v-0)
Bearing type	Dual Ball Bearing
Leadwire	UL1007AWG#24 or Equivalent (+):Red(-):Black
Motor	Impedance Protected and Reverse Polarity Protected

Expected Life:

Ball Bearing 50,000 hours(40°c)

Allowable Ambient Temperature Range:

1.-10°c~+70°c (Operating)

2.-40°c~+70°c (Storage)

3.(non-condensing environment)

Competitive Advantage:

*Qualified, cost effective and easily operated

*Small in shape, have compact structure

*UL, CE, Rohs, CUL, CCC

* Competitive Pricing

* Keep Investing and Developing In New Products

* The Most Advanced Testing and Measuring Equipment

* On-Time Delivery

Industrial Ventilation Fans 120 x 120 x 38mm 4.5 Inch Computer Case Fan

Product Tags:

electronics cooling fans

waterproof cooling fan

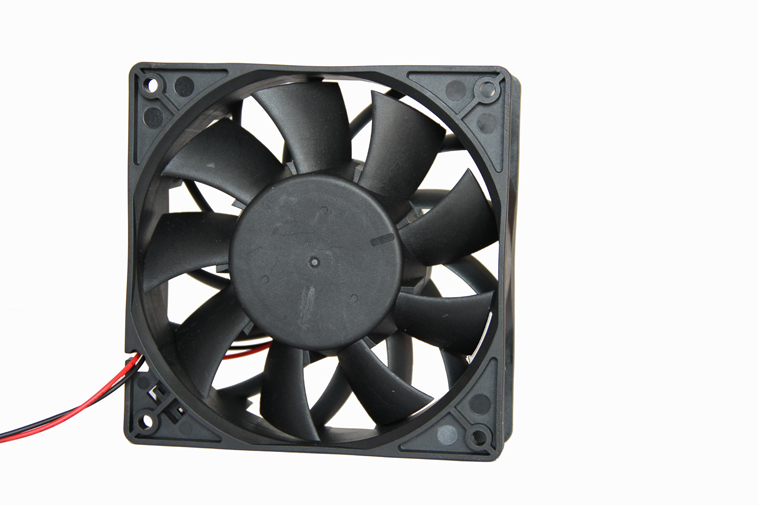

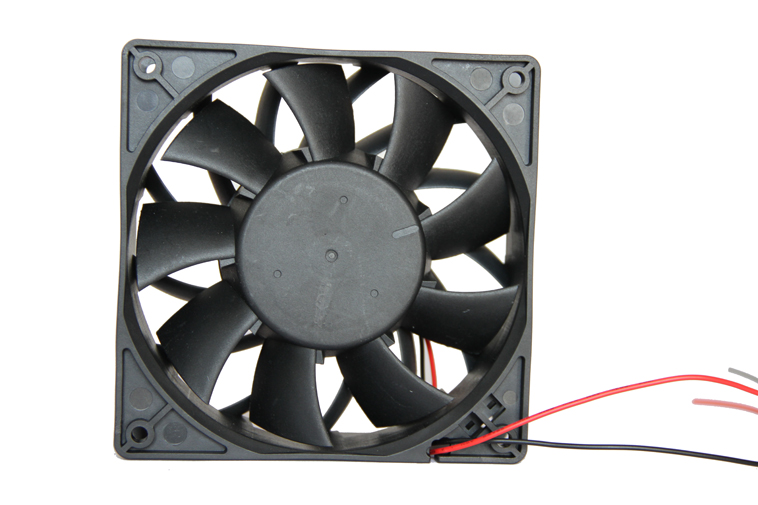

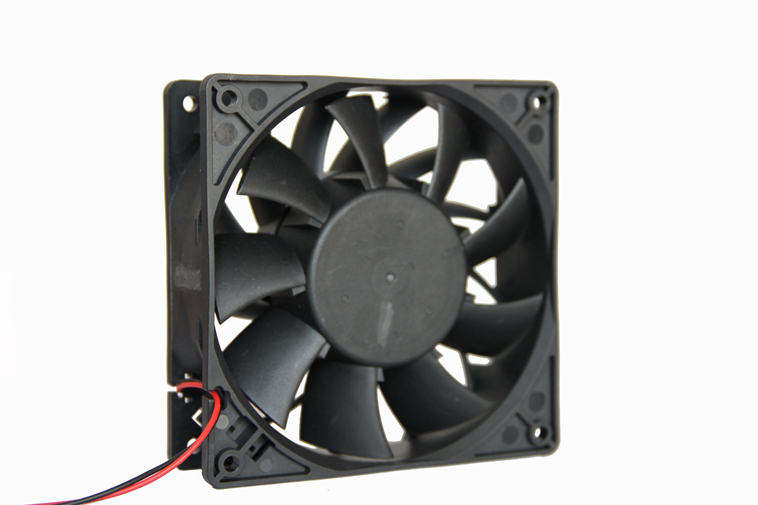

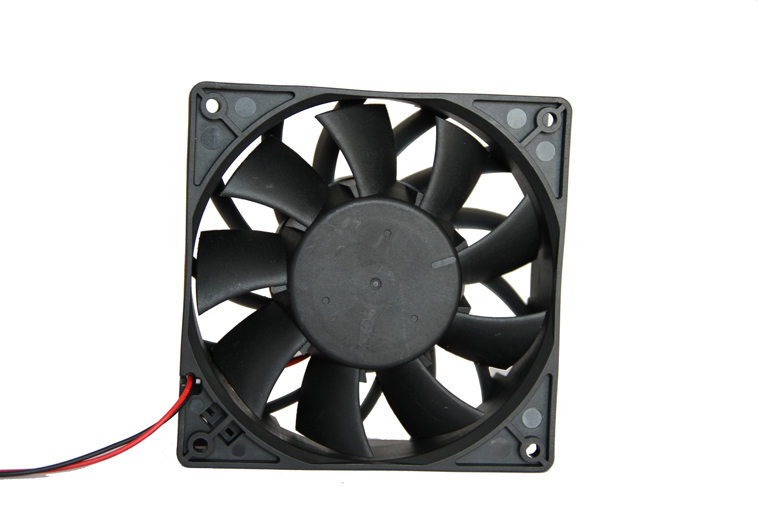

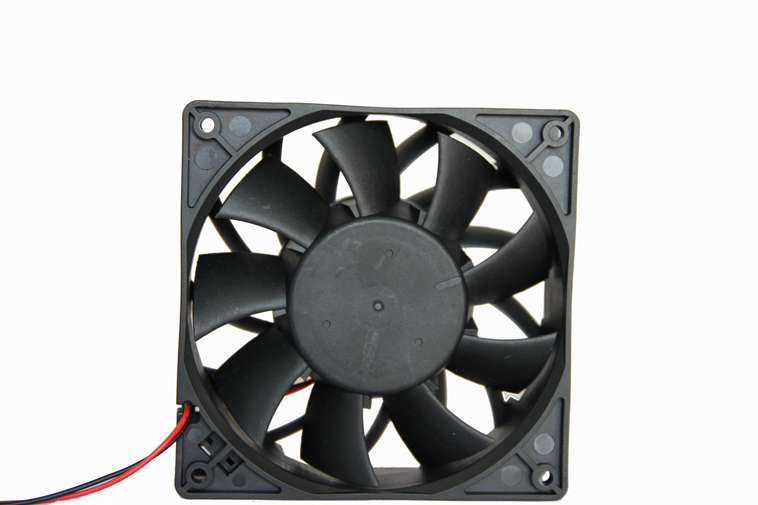

Industrial Ventilation Fans 120 x 120 x 38mm 4.5 Inch Computer Case Fan Images
