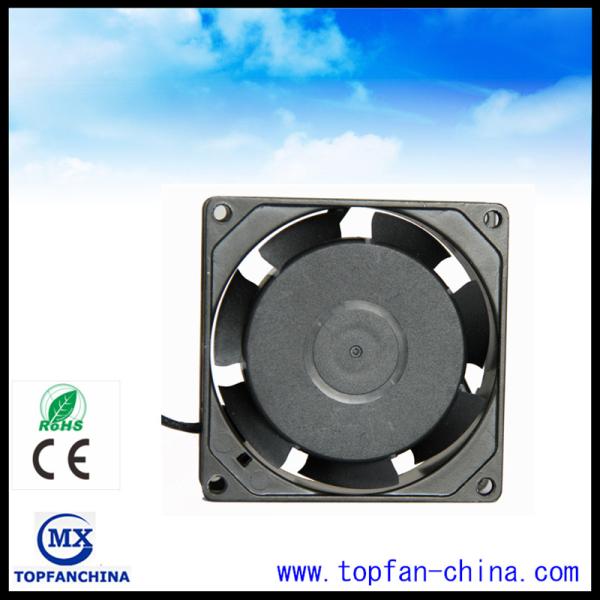

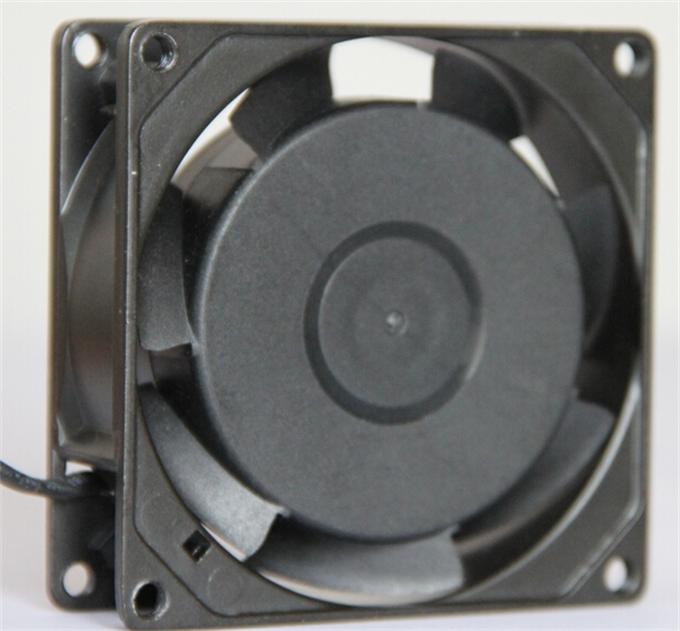

80mm 110V - 120V Equipment Cooling Fans / 3.1 Inch AC Cooling Motor Fan 80 ×80 ×25mm

Product Categories

Shenzhen Topfan Technology Development Co., Ltd.

Contact Now

80mm 110V - 120V Equipment Cooling Fans / 3.1 Inch AC Cooling Motor Fan 80 ×80 ×25mm

Brand Name : MX

Model Number : MX8025ABH11

Certification : CE/ROHS

Place of Origin : China

MOQ : 500pcs

Price : negotiation

Payment Terms : T/T or western Union

Supply Ability : 40,000pcs per month

Delivery Time : 7-10 working days after received your payment

Packaging Details : carton

Product Name : 80 ×80 ×25mm Equipment Cooling Fans

Voltage : 110V-120V / 220V-240V

Frequency : 50/60hz

Power Consumption : 11/18W

Air Flow : 22/29CFM

Speed : 2400/2900RPM

Bearing System : Ball Bearing or Sleeve Bearing

Weight : 230g

Contact Now

80mm 110V - 120V Equipment Cooling Fans / 3.1 Inch AC Cooling Motor Fan 80 ×80 ×25mm

80*80*25mm AC fan, low noise and long life expectancy, are widely used in network communications, as well as industrial production equipment, medical equipment, home appliances, etc.

Description:

110V-120V 220V-240V AC FAN, used for cooling and ventilation.
Frame: Aluminum ADC-12, Painted Black
Blade:metal
Stator& Rotor: Silicon steel
Magnet Wires: Copper 1 PEW
Bobbin: PA-66 UL 94 V-0
Bearing Type: Ball Bearing

Specification:

Model	Bearing Type	Rated Voltage	Freq.	Current Amp	Input Power	Speed	Max Air Flow		Noise Level	Weight
Model	Bearing Type	Rated Voltage	Freq.	Current Amp	Input Power	Speed	Max Air Flow		Noise Level	Weight
Part No.	S B Y	VDC	Hz	Amp	Watt	RPM	CFM	m³/min	dB-A	g
MX8025ABH11	B	110/120	50/60	0.14/0.12	11	2400/2900	22/29	0.45/0.53	24/29	230
MX8025ABH22	B	220/240	50/60	0.09/0.05	18	2400/2900	22/29	0.45/0.53	24/29	230

Environmental Specification:

Item		Specification/Condition
01	Operating Temp. Range	Temperature:-20℃~75℃ Humidity:20%~85%RH
02	Storage Temperature	Temperature:-30℃~140℃ Humidity:20%~95%RH
03	Life	50000H

Main Materials/Parts Specification:

(Item		Specification
01	Blade	(PBT) PBT+15%GF
02	Frame	Aluminum ADC-12,Painted Black
03	Stator& Rotor	Silicon stee
04	Magnet Wires	Copper 2 UEW
05	Bobbin	PA-66 UL 94 V-0

Competitive Advantage:

*Qualified, cost effective and easily operated
*Small in shape, have compact structure
*UL, CE, Rohs, SGS, CCC
* Competitive Pricing
* Keep Investing and Developing In New Products
* The Most Advanced Testing and Measuring Equipment
* On-Time Delivery

Dimension:
80mm 110V - 120V Equipment Cooling Fans / 3.1 Inch AC Cooling Motor Fan 80 ×80 ×25mm ll
