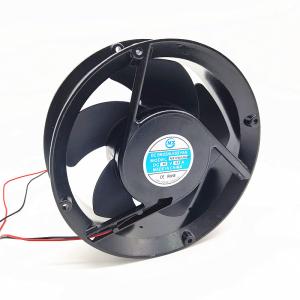

172x51mm Large air flow 12V 24V 48V DC motor axial fan with round housing
Specification:
Size: 172*172*51mm
Bearing Type: Ball Bearing < 50,000 hours(40°C)
Protection: Impedance Protected
Temperature Range: -20°C~+105°C
Other Function rage: PWM, FG, RD, IP55, IP68, dustproof, waterproof, explosion proof and dustproof
Specfication, DimenSion(unit:mm), Fan performance:
| Model | Bearing Type | Rated Voltage | Operating Voltage | Input Current | Input Power | Speed | Max Air Flow | Max Static Pressure | Noise | Weight |
| Part No. | B.S | VDC | VDC | Amp | Watt | RPM | CFM | m3/min | Inch-H2O | pa | dB-A | g |
| MX17251ABU1 | B | 12 | 7.0-13.8 | 3.00 | 36.00 | 4000 | 305.29 | 8.65 | 1.14 | 283.51 | 67.00 | 740.00 |
| MX17251ABH1 | B | 12 | 7.0-13.8 | 2.00 | 24.00 | 3500 | 257.88 | 7.30 | 0.71 | 176.81 | 59.00 | 740.00 |
| MX17251ABM1 | B | 12 | 7.0-13.8 | 1.50 | 18.00 | 3000 | 220.85 | 6.25 | 0.52 | 128.57 | 51.00 | 740.00 |
| MX17251ABL1 | B | 12 | 7.0-13.8 | 1.00 | 12.00 | 2500 | 185.24 | 5.25 | 0.37 | 92.77 | 44.00 | 740.00 |
| MX17251ABU2 | B | 24 | 14.0-27.6 | 1.50 | 36.00 | 4000 | 305.29 | 8.65 | 1.14 | 283.51 | 67.00 | 740.00 |
| MX17251ABH2 | B | 24 | 14.0-27.6 | 1.00 | 24.00 | 3500 | 257.88 | 7.30 | 0.71 | 176.81 | 59.00 | 740.00 |
| MX17251ABM2 | B | 24 | 14.0-27.6 | 0.70 | 16.80 | 3000 | 220.85 | 6.25 | 0.52 | 128.57 | 51.00 | 740.00 |
| MX17251ABL2 | B | 24 | 14.0-27.6 | 0.50 | 12.00 | 2500 | 185.24 | 5.25 | 0.37 | 92.77 | 44.00 | 740.00 |
| MX17251ABU4 | B | 48 | 28.0-56.0 | 0.80 | 38.40 | 4000 | 305.29 | 8.65 | 1.14 | 283.51 | 67.00 | 740.00 |
| MX17251ABH4 | B | 48 | 28.0-56.0 | 0.60 | 28.80 | 3500 | 257.88 | 7.30 | 0.71 | 176.81 | 59.00 | 740.00 |
| MX17251ABM4 | B | 48 | 28.0-56.0 | 0.50 | 24.00 | 3000 | 220.85 | 6.26 | 0.52 | 128.57 | 51.00 | 740.00 |
| MX17251ABL4 | B | 48 | 28.0-56.0 | 0.40 | 19.20 | 2500 | 185.24 | 5.25 | 0.37 | 82.77 | 44.00 | 740.00 |
More picture:
Basic information:
Size: 172*172*51mm
Bearing Type: Ball Bearing < 50,000 hours(40°C)
Protection: Impedance Protected
Temperature Range: -20°C~+105°C
Other Function rage: PWM, FG, RD, IP55, IP68, dustproof, waterproof, explosion proof and dustproof
Specfication, DimenSion(unit:mm), Fan performance:
| Model | Bearing Type | Rated Voltage | Operating Voltage | Input Current | Input Power | Speed | Max Air Flow | Max Static Pressure | Noise | Weight |
| Part No. | B.S | VDC | VDC | Amp | Watt | RPM | CFM | m3/min | Inch-H2O | pa | dB-A | g |
| MX17251ABU1 | B | 12 | 7.0-13.8 | 3.00 | 36.00 | 4000 | 305.29 | 8.65 | 1.14 | 283.51 | 67.00 | 740.00 |
| MX17251ABH1 | B | 12 | 7.0-13.8 | 2.00 | 24.00 | 3500 | 257.88 | 7.30 | 0.71 | 176.81 | 59.00 | 740.00 |
| MX17251ABM1 | B | 12 | 7.0-13.8 | 1.50 | 18.00 | 3000 | 220.85 | 6.25 | 0.52 | 128.57 | 51.00 | 740.00 |
| MX17251ABL1 | B | 12 | 7.0-13.8 | 1.00 | 12.00 | 2500 | 185.24 | 5.25 | 0.37 | 92.77 | 44.00 | 740.00 |
| MX17251ABU2 | B | 24 | 14.0-27.6 | 1.50 | 36.00 | 4000 | 305.29 | 8.65 | 1.14 | 283.51 | 67.00 | 740.00 |
| MX17251ABH2 | B | 24 | 14.0-27.6 | 1.00 | 24.00 | 3500 | 257.88 | 7.30 | 0.71 | 176.81 | 59.00 | 740.00 |
| MX17251ABM2 | B | 24 | 14.0-27.6 | 0.70 | 16.80 | 3000 | 220.85 | 6.25 | 0.52 | 128.57 | 51.00 | 740.00 |
| MX17251ABL2 | B | 24 | 14.0-27.6 | 0.50 | 12.00 | 2500 | 185.24 | 5.25 | 0.37 | 92.77 | 44.00 | 740.00 |
| MX17251ABU4 | B | 48 | 28.0-56.0 | 0.80 | 38.40 | 4000 | 305.29 | 8.65 | 1.14 | 283.51 | 67.00 | 740.00 |
| MX17251ABH4 | B | 48 | 28.0-56.0 | 0.60 | 28.80 | 3500 | 257.88 | 7.30 | 0.71 | 176.81 | 59.00 | 740.00 |
| MX17251ABM4 | B | 48 | 28.0-56.0 | 0.50 | 24.00 | 3000 | 220.85 | 6.26 | 0.52 | 128.57 | 51.00 | 740.00 |
| MX17251ABL4 | B | 48 | 28.0-56.0 | 0.40 | 19.20 | 2500 | 185.24 | 5.25 | 0.37 | 82.77 | 44.00 | 740.00 |

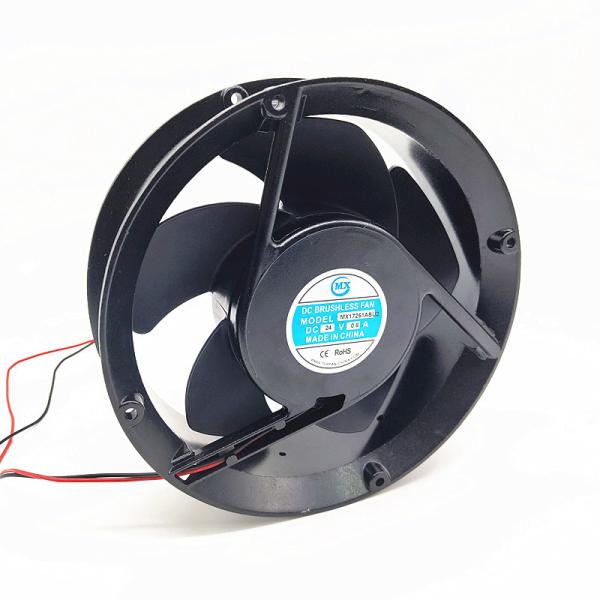

Fan show:
Our factory:
Packaging:
More detail information, please contact with me as soon as possible .
Molly
Skype/Tel/WhatsApp:+86 152 7034 4076.
