Brand Name : MX/OEM/ODM
Model Number : MX8025ABU1
Certification : CE/ROHS
Place of Origin : CHINA
MOQ : 500PCS
Price : usd2.9-3.9
Payment Terms : T/T, Western Union
Supply Ability : 100000pcs/week
Delivery Time : 7-14 working days
Packaging Details : CARTON
Color : Black
Material : Plastic Blade Plastic Frame
Bearing Type : Ball bearing
Size : 80x80x25mm
Speed : 7500rpm
Application : Industrial Equipment
80x80x25 high airflow dc ventilation fans, high power radiator fan , waterproof exhaust cooler fan
Description:
60x60x38mm DC Fan, low noise and long life expectancy, are commonly used in HVAC systems,machinery for heating, ventilating, air conditioning, drying, dehumidifying, etc. Such as electronic air cleaner , hand dryers,electronic oven, gas oven, electronic fireplace, gas fireplace, electric fan good balance condition,etc.
General Specifications:
ITEM | Specification Condition | |||
01 | Part No. | MX8025ABU1 | ||
02 | Dimension | 80×80×25mm | ||
03 | Rated Voltage | 12VDC | ||
04 | Start-up Voltage | DC ≤6V on/off | ||
05 | Operating Voltage | DC 10.8-123.2V | a. Rated Voltage | |
06 | Rated Speed | 7500 RPM | ±10% | b. 25℃ |
07 | Rated Current | 0.6A | ±10% | c. 65% RH |
08 | Rated Power | 7.2W | d. Measured after 5 Mins | |
09 | Max Airflow | 73CFM | a. PQ Measurement Apparatus : (LW9266-SR) b. Standard : AMCA c. Rated Voltage d. Rated Current | |
10 | Max Static Pressure | 0.7inchH2O | ||
11 | Life Expectancy | 70000hrs at 25℃ | a.L10 at Conf. Level 90% b. Rated Voltage | |
12 | Noise Level | 48dB | a. Rated Voltage b. Non-Echo Chamber c.Standard:CNS 8753/ISO3744 d.Test Condition:ISO 7779 e. Distance: 1.0M | |
13 | No. of Pole | 4 Poles | ||
14 | Waterproof | NO |

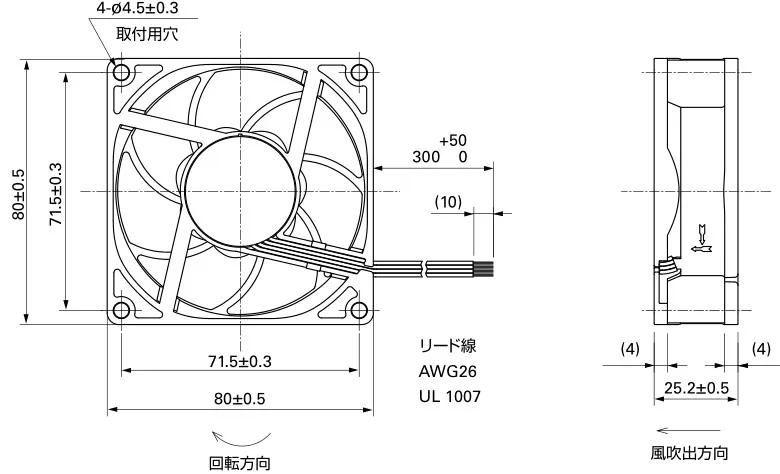

Dimensions (Unit:mm)
You can choose the shipping way by yourself .
You can choose the freight forward company by yourself .
We can arrang the shipment according to your require .
If you have any requirements you could contact me soon .
1.Samples delivery time is 7 working days . ( The quantity of free samples among 2 - 3 pcs . )
2 . Fans quantity : 1K ~ 5K ,the delivery time is 7 ~ 10 working days ;
Fans quantity : over 5K , the delivery time is 15 - 20working days
3 . International express : UPS / DHL / FEDEX and so on .
1.We are professtional and experienced manufature of Axial Fan in China.
2.Customization, the size and functions of fan manufacture according to your demands.
3.We’ll reply you in 24 hours after you send inquiry to us.
4.We holding the principle of good faith to manage our company for 25 years.
Shenzhen Topfan Technology Development Co., Ltd. is a professional fan design and processing enterprises. founded in 1996 in Shenzhen China, It's a manufacturer on AC fan and DC brushless fans. Products support OEM, ODM and passed CE RoHS UL EML EMS certificated and good sellers both at home and abroad, the products mainly includs axial fans, cross flow fans (tangential fan), blower fans (centrifugal), being widely used in the information technology, network communications as well as industrial equipment, medical equipment, home appliances and others.
Company:
Factory:
- Fast lead time: sample in stock, just need 1-2days, for 1000pcs, just 2 weeks;
-OEM service based on MOQ1000pcs;
-Best price from factory;
-Best quality cooling fans, all fans will be done 100% testing before the fans sent out;
like the below
1. High temperature Preservation test
2. Low temperature Preservation test
3. Humidity preservation test
4. Temperature cycle test
5. Noise test
-Best service by our sales and engineers, we will reply you within 24 hours, provide one year warranty;
-All can be customized by your requirment.
