1800 Pa Personal Protection Medical Respirator Ventilator DC 12V Blower Fans 58 Mm
Basic description :

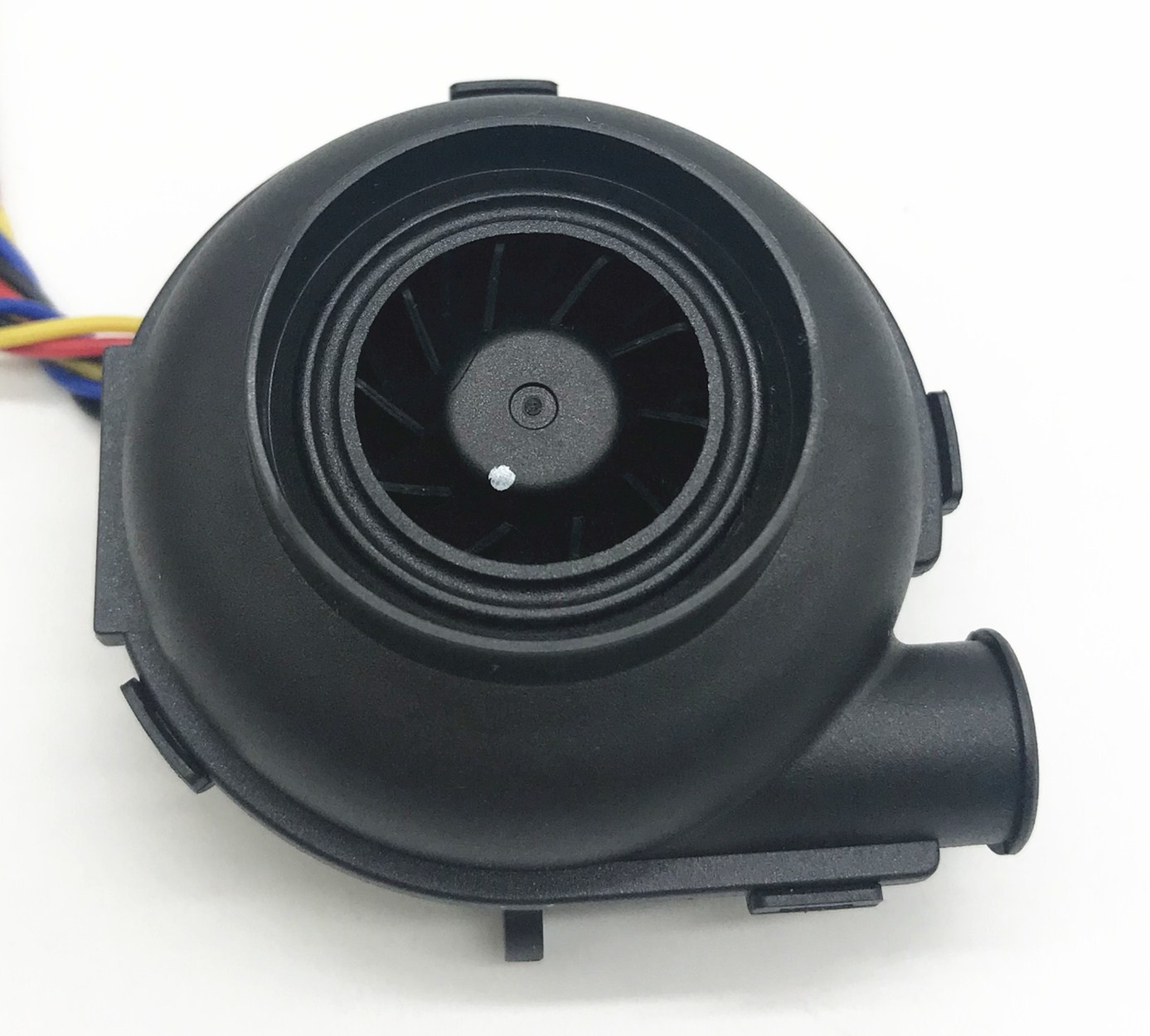

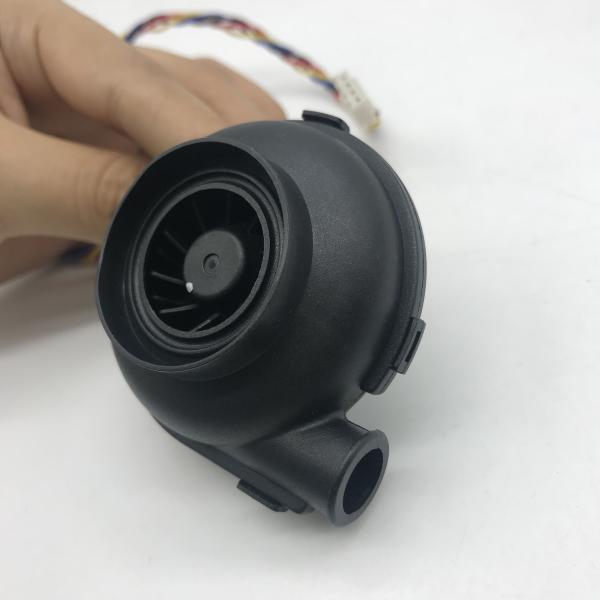

Name: CPAP Blower Motor Fan
Motor type: Brushless fan
Rated Voltage : DC 12V or 24V
Rated Speed: 20000 rpm ± 10%
Max Air flow rate: 6.5 CFM
Max Air pressure: 1882 Pa
Noise level: 62 dB
Lifetime min: 10000 hrs-30000 hrs at 30℃
Motor Protection: The motor assembly is immersed in three - proof paint, waterproof ip55.
| Feasure |
| Small size |
| High pressure |
| easy to install |
| low consumption |
| light weight |
Additional protection functions can be added: AS automatic lock/start function, slow start function, over current protection, motor lock current protection, reverse connection protection, over voltage protection, PWM, FG, RD, IP55, IP68
Quality certification: CE ROSH
Packing: special high-strength carton packaging
List of optional additional functions:
Moisture-proof: After moisture-proof treatment, it can work in the environment with humidity of 205-40%
Waterproof: up to IP68, under this level can be completely put into the water
Fireproof: All raw materials can be made of flame retardant materials, the highest resistance is 75℃
Alarm signal: a signal alarm can be given after the fan stops
The products are mainly suitable for: ventilators, products requiring high-pressure air volume, instruments and meters, vehicle-mounted equipment, and air purification.
