Name: Sleeve And Ball Bearing Equipment Cooling Fans Dc 4020mm 24v Pbt Motor Fan
Brand: MX/OEM/ODM
Price: 1.9 USD

Brand Name : MX/OEM/ODM

Model Number : MX4020ABH5

Certification : CE/ROHS

Place of Origin : CHINA

MOQ : 500pcs

Price : usd1.9-4.9/pcs

Payment Terms : T/T, Western Union

Supply Ability : 60000pcs/week

Delivery Time : 7-14 working days

Packaging Details : CARTON or as your required

After-sales Service Provided : Online support

Color : black

Bearing Type : Ball Bearing/sleeve bearing

Expected life : <80000 hours

Frame and impeller : plastic

Function : RD,FG,PWM

Material : Plastic

Contact Now

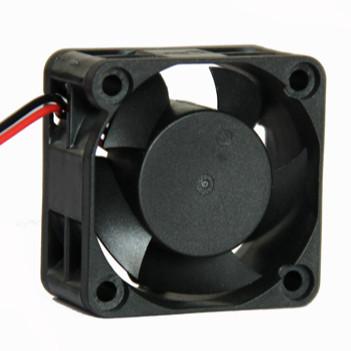

sleeve and ball bearing DC fan 40*40*20mm 24V middle speed PBT fan motor fan with CE and ROHS micro cooler fan

Product Description

Frame and Impeller:		Plastic (94V-0),PBT
Bearing Type:		Sleeve bearing&Ball bearing
Function Range:		FG RD PWM IP58 IP68
Leadwire:		Red Wire Positive(+),Black Wire Negative(-)
Operating Voltage:		5V 12V 24V
Tempetature Range:		–20℃ to +70℃
Motor:		Impedance Protected and Reverse Polarity Protected
Model	Bearing Type	Rated Voltage	Operating Voltage	Input Current	Input Power	Speed	Max Air Flow		Max Static Pressure		Noise	Weight
Model	Bearing Type	Rated Voltage	Operating Voltage	Input Current	Input Power	Speed	Max Air Flow		Max Static Pressure		Noise	Weight
Part No.	B.S	VDC	VDC	Amp	Watt	RPM	CFM	m³/min	Inch-H₂O	pa	dB-A	g
MX4020AB(S/Y)H5	B.S.Y	5	3.5-5.5	0.40	2.00	10000	10.79	0.31	0.43	106.40	38.00	24.00
MX4020AB(S/Y)M5	B.S.Y	5	3.5-5.5	0.25	1.25	8000	8.43	0.24	0.27	68.16	35.00	24.00
MX4020AB(S/Y)L5	B.S.Y	5	3.5-5.5	0.18	0.90	6000	6.47	0.18	0.16	39.72	27.00	24.00
MX4020AB(S/Y)D5	B.S.Y	5	3.5-5.5	0.10	0.50	4000	3.93	0.11	0.07	17.46	23.00	24.00
MX4020AB(S/Y)H1	B.S.Y	12	7.0-13.8	0.16	1.92	10000	10.79	0.31	0.43	106.40	38.00	24.00
MX4020AB(S/Y)M1	B.S.Y	12	7.0-13.8	0.13	1.56	8000	8.43	0.24	0.27	68.16	35.00	24.00
MX4020AB(S/Y)L1	B.S.Y	12	7.0-13.8	0.08	0.96	6000	6.47	0.18	0.16	39.72	27.00	24.00
MX4020AB(S/Y)D1	B.S.Y	12	7.0-13.8	0.05	0.60	4000	3.93	0.11	0.07	17.46	23.00	24.00
MX4020AB(S/Y)H2	B.S.Y	24	14.0-27.6	0.12	2.88	10000	10.79	0.31	0.43	106.40	38.00	24.00
MX4020AB(S/Y)M2	B.S.Y	24	14.0-27.6	0.08	1.92	8000	8.43	0.24	0.27	68.16	35.00	24.00
MX4020AB(S/Y)L2	B.S.Y	24	14.0-27.6	0.05	1.20	6000	6.47	0.18	0.16	39.72	27.00	24.00

Sleeve And Ball Bearing Equipment Cooling Fans Dc 4020mm 24v Pbt Motor Fan

electronics cooling fans
