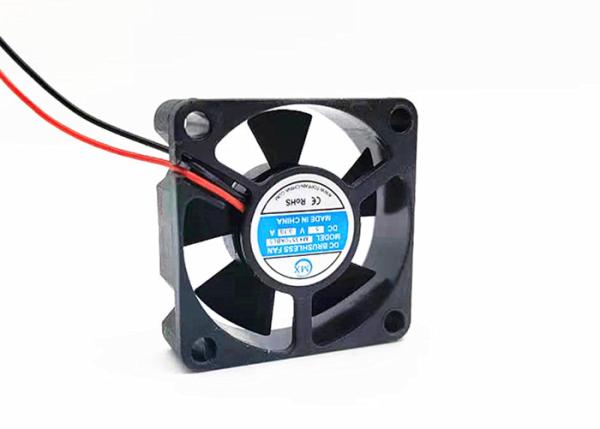

35mm Small Dc Equipment Cooling Fans 12V 8000rpm long life fan

Shenzhen Topfan Technology Development Co., Ltd.
Contact Now

35mm Small Dc Equipment Cooling Fans 12V 8000rpm long life fan

  • 1
  • 2

Brand Name : MX

Model Number : MX3510ABH5

Certification : CE / ROHS

Place of Origin : China

MOQ : 500pcs

Payment Terms : T / T

Supply Ability : 100000PCS / MONTH

Delivery Time : 10 - 15 DAYS

Packaging Details : carton box

Size : 35mm X 35mm X 10mm

Bearing : ball bearing

Speed : 6000-10000rpm

Motor type : DC brushless type

Certifications : CE ROHS

Material : Platics frame and impeller

Weight : 10g

Noise : 26-32db

Contact Now

35mm small dc fan 12V 8000rpm waterproof fan with 4pin connector

Product Description

Frame and Impeller: Plastic (94V-0),PBT
Bearing Type: Sleeve bearing&Ball bearing
Function Range: FG IP58
Leadwire: Red Wire Positive(+),Black Wire Negative(-)
Operating Voltage: 5V 12V
Tempetature Range: –20℃ to +70℃
Motor: Impedance Protected and Reverse Polarity Protected

Model Bearing Type Rated Voltage Operating Voltage Input Current Input Power Speed Max Air Flow Max Static Pressure Noise Weight
Part No. B.S VDC VDC Amp Watt RPM CFM m3/min Inch-H2O pa dB-A g
MX4010AB(S/Y)H5 B.S.Y 5 3.5-5.5 0.22 1.10 7000 7.50 0.21 0.15 36.87 32.00 16.00
MX4010AB(S/Y)M5 B.S.Y 5 3.5-5.5 0.14 0.70 6000 6.42 0.18 0.12 29.42 27.00 16.00
MX4010AB(S/Y)L5 B.S.Y 5 3.5-5.5 0.10 0.50 5000 5.54 0.15 0.09 21.67 24.00 16.00
MX4010AB(S/Y)D5 B.S.Y 5 3.5-5.5 0.08 0.40 4000 4.39 0.12 0.06 14.32 21.00 16.00
MX4010AB(S/Y)H1 B.S.Y 12 7.0-13.8 0.15 1.80 7000 7.50 0.21 0.15 36.87 32.00 16.00
MX4010AB(S/Y)M1 B.S.Y 12 7.0-13.8 0.08 0.96 6000 6.42 0.18 0.12 29.42 27.00 16.00
MX4010AB(S/Y)L1 B.S.Y 12 7.0-13.8 0.06 0.72 5000 5.54 0.15 0.09 21.67 24.00 16.00
MX4010AB(S/Y)D1 B.S.Y 12 7.0-13.8 0.04 0.48 4000 4.39 0.12 0.06 14.32 21.00 16.00
MX4010AB(S/Y)H2 B.S.Y 24 14.0-27.6 0.07 1.68 7000 7.50 0.21 0.15 36.87 32.00 16.00
MX4010AB(S/Y)M2 B.S.Y 24 14.0-27.6 0.05 1.20 6000 6.42 0.18 0.12 29.42 27.00 16.00
MX4010AB(S/Y)L2 B.S.Y 24 14.0-27.6 0.04 0.96 5000 5.54 0.15 0.09 21.67 24.00 16.00

Company Information

ShenZhen Topfan China is a professional manufaturer with 11 years experience Which produces AC fan, DC fan, brushless fan, blower fan and EC fan. Our main markets are south Asia,south America, Europe.

Concentrate on the sevice of customer” is our purpose.

FAQ

Q: Are you trading company or manufacturer ?

A: We are factory.

Q: Do you provide samples ? is it free or extra ?

A: Yes, we could offer the sample for but not free

Q: How long is your delivery time?

A: Generally it is 7-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.

Q: What is your terms of payment ?

A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 50% T/T in advance ,balance before shippment.
