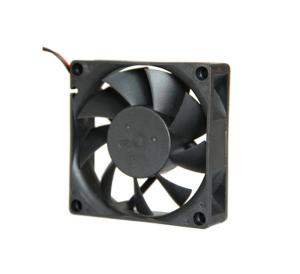

24 Volt Electronics Cooling Fans 707025mm Dc Electric Motors With CE Approval

Name: 24 Volt Electronics Cooling Fans 707025mm Dc Electric Motors With CE Approval
Brand: MX/OEM/ODM
Price: 1.9 USD

Quality 24 Volt Electronics Cooling Fans 70*70*25mm Dc Electric Motors With CE Approval wholesale

Brand Name : MX/OEM/ODM

Model Number : MX7025ABU1

Certification : CE/ROHS

Place of Origin : China

MOQ : 500pcs

Price : usd1.9-4.9/pcs

Payment Terms : T/T

Supply Ability : 30000pcs/week

Delivery Time : 7-14 working days

Packaging Details : CARTON

color : black

Application : Engine Cooling System

Name : dc fan

Size : 70*70*25mm

Product name : DC Fan

Usage : Cooling

Contact Now

cooler electrical environmental fan 70*70*25mm dc electric motors 24 volt fans with CE approved

General Specifications

frame: plastic

impeller: plastic

bearing type: dual ball bearing

leadwire: ul 1007 AWG#24 or equivalent (+):red (-)black

motor: impdance protected and reverse polarity protected

Fan Performance Curve

non-condensing environment

ball bearing 50,000 hours(40°C)

operating temp range:-10°C~70°C

storage temp range:-40°C~70°C

Specifications

Model	Bearing Type	Rated Voltage	Operating Voltage	Input Current	Input Power	Speed	Max Air Flow		Max Static Pressure		Noise	Weight
Model	Bearing Type	Rated Voltage	Operating Voltage	Input Current	Input Power	Speed	Max Air Flow		Max Static Pressure		Noise	Weight
Part No.	B.S	VDC	VDC	Amp	Watt	RPM	CFM	m3/min	Inch-H2O	pa	dB-A	g
MX7025AB(S)U1	B.S	12	7.0-13.8	0.30	3.60	4500	33.57	0.95	0.24	59.43	42.00	52.00
MX7025AB(S)H1	B.S	12	7.0-13.8	0.25	3.00	4000	31.01	0.88	0.21	52.66	37.00	52.00
MX7025AB(S)M1	B.S	12	7.0-13.8	0.20	2.40	3500	27.93	0.79	0.17	42.86	32.00	52.00
MX7025AB(S)L1	B.S	12	7.0-13.8	0.15	1.80	3000	23.02	0.65	0.13	31.28	28.00	52.00
MX7025AB(S)U2	B.S	24	14.0-27.6	0.20	4.80	4500	33.57	0.95	0.24	59.43	42.00	52.00
MX7025AB(S)H2	B.S	24	14.0-27.6	0.16	3.84	4000	31.01	0.88	0.21	52.66	37.00	52.00
MX7025AB(S)M2	B.S	24	14.0-27.6	0.12	2.88	3500	27.93	0.79	0.17	42.86	32.00	52.00
MX7025AB(S)L2	B.S	24	14.0-27.6	0.08	1.92	3000	23.02	0.65	0.13	31.28	28.00	52.00
MX7025AB(S)U4	B.S	48	28.0-56.0	0.07	3.36	4500	33.57	0.95	0.24	59.43	42.00	52.00
MX7025AB(S)H4	B.S	48	28.0-56.0	0.05	2.40	4000	31.01	0.88	0.21	52.66	37.00	52.00
MX7025AB(S)M4	B.S	48	28.0-56.0	0.04	1.92	3500	27.93	0.79	0.17	42.86	32.00	52.00
MX7025AB(S)L4	B.S	48	28.0-56.0	0.03	1.44	3000	23.02	0.65	0.13	31.28	28.00	52.00
